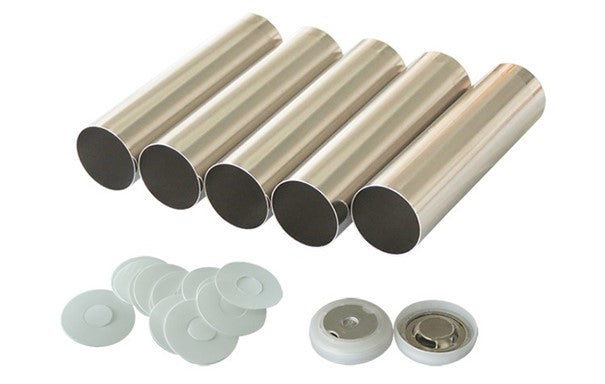

The 18650 Cylinder Cell Case is a cylindrical can kit for building 18650-format battery cells in the lab. Cylindrical packaging remains a common choice for both primary and secondary batteries because it is easy to produce and mechanically stable, and the tubular body resists deformation under high internal pressure.
The case measures 18 mm outer diameter, 17.5 mm inner diameter and 67 mm height. The case and cap are made of nickel plated A3 steel, while the seal O-ring and spacer are nylon. The top cap includes a built-in PTC thermistor, and top and bottom insulators are part of the set.
For safety, the cap carries an anti-explosive valve that opens at 2.5 MPa, venting excess internal pressure so the can does not explode. Each piece weighs 9.50 g.
- Assembly of 18650 cylindrical cells for primary battery research.
- Assembly of 18650 cylindrical cells for secondary (rechargeable) battery research.
- Building test cells that need an anti-explosive cap with insulation O-ring.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | 100 sets, 250 sets, 500 sets |
| Physical form | — |
| Storage | — |
- Product code: NG08BE0201
- Product code: NG08BE0201
- Cap: Cap with Built-in PTC Thermistor
- Case dimensions: 18 mm(OD) x 17.5 mm(ID) x 67 mm(H)
- Top cap: 17.5 mm(D) x 4.05 mm(H)
- Top insulator: 12.5 mm(D) x 0.19 mm(H)
- Bottom insulator: 12.5 mm(D) x 0.19 mm(H)
- Case and cap material: Nickel plated A3 steel
- Seal O-ring and spacer material: Nylon
- Weight: 9.50 g/pcs
- Safety valve open pressure: 2.5 MPa
The cap's safety valve opens at 2.5 MPa to release high internal pressure and prevent the can from exploding.
—
