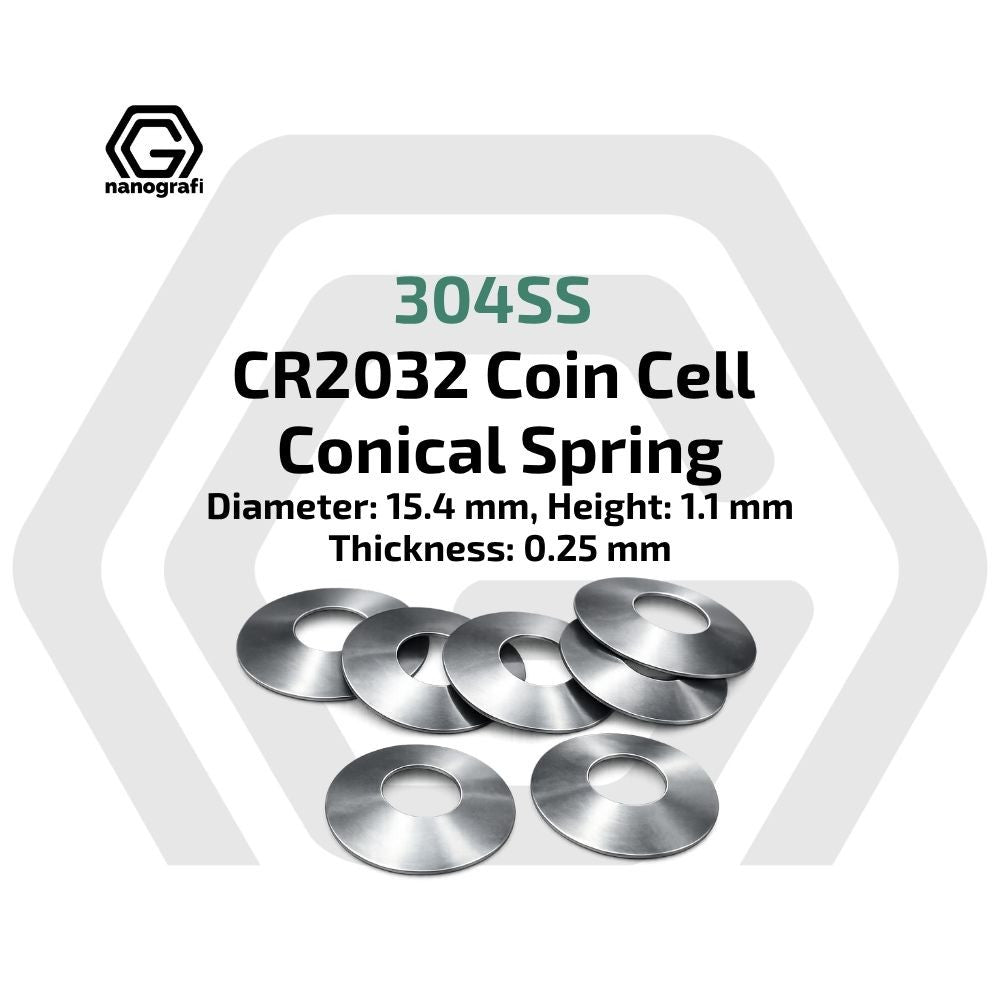

This conical spring is a 304 stainless steel (304SS) component for building CR2032 coin cells. In the cell stack it fits as the spring element, and its conical shape is designed for the CR2032 format.
The spring has a diameter of 15.4 mm, a height of 1.1 mm and a material thickness of 0.25 mm. It is offered in packs of 100, 250 or 500 pieces, suited to laboratories that assemble coin cells regularly for battery research and testing.
- Assembly of CR2032 coin cells in battery research laboratories.
- Building coin cells to evaluate electrode and electrolyte materials.
- Half-cell testing of anode and cathode materials in the CR2032 format.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG04CO08017
- Diameter: 15.4 mm
- Height: 1.1 mm
- Thickness: 0.25 mm
- Material: 304SS
- Cell format: CR2032
—
—
