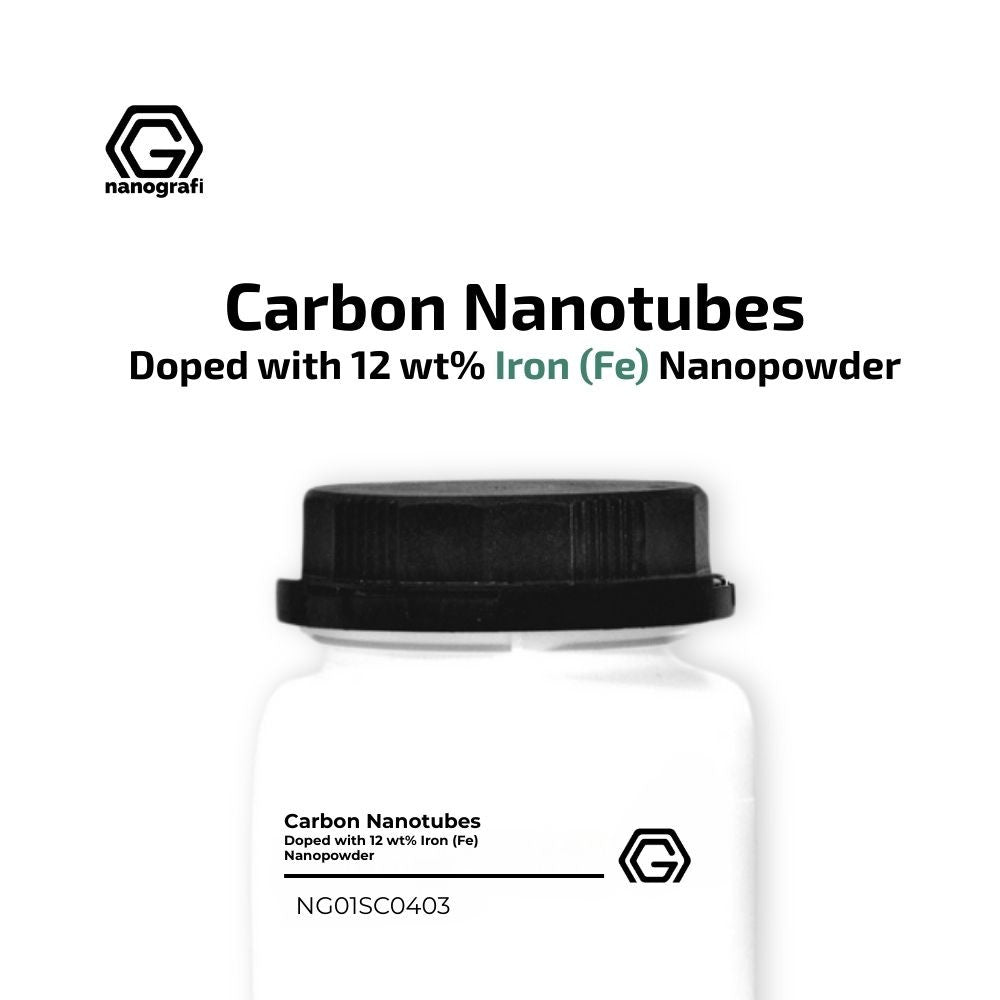

This hybrid nanomaterial from Nanografi pairs multi-walled carbon nanotubes (MWCNTs) with 12 wt% iron (Fe) nanoparticles. The nanotubes contribute high electrical conductivity and mechanical resilience, while the iron adds magnetic behaviour, catalytic activity and structural reinforcement.
The two components form a uniform, stable composite structure that raises hardness, tensile strength, specific strength and elastic modulus. The iron fraction has a purity of 99.99% with an average particle size of 800 nm and irregular particle shape, and the MWCNTs have a purity above 97 wt%, an outside diameter above 50 nm and lengths of 15-25 µm.
Because it combines conductivity, magnetism and catalytic function in one material, the CNT–Fe hybrid is used in energy storage, electronics, biomedical systems, catalysis and advanced composite research. It is available in 5 grams, 25 grams, 100 grams, 500 grams and 1000 grams packs.
- Electrode material for lithium-ion batteries and supercapacitors, where iron improves electrode stability, redox activity and cycle life.
- Hydrogen storage systems that use CNT porosity together with the catalytic role of iron in adsorption.
- Transistors, flat panel displays and solar cells requiring improved charge transport and device reliability.
- Biosensors, drug delivery systems and nanoprobes that use the magnetic responsiveness of iron for targeted release and imaging.
- Reinforcement of polymer and ceramic composites for lightweight, conductive aerospace, automotive and construction materials.
- Catalyst support for electrochemical and photocatalytic reactions, pollutant remediation and environmental sensing.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | 99.99% |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG01SC0403
- Fe content: 12 wt%
- Fe average particle size: 800 nm
- Fe specific surface area: 1,0-5,0 m2/g
- Fe true density: 8,1 g/cm3
- Fe color / shape: Dark gray, irregular
- CNT type: Multi Walled Carbon Nanotubes
- CNT purity: > 97 wt%
- CNT average outside diameter: > 50 nm
- CNT average inside diameter: 5 nm
- CNT length: 15-25 µm
- CNT tap density / true density: 0.15 g/cm3 / ~2.4 g/cm3
- CNT specific surface area: > 65 m2/g
- CNT ash: < 1.5 wt%
- CNT electrical conductivity: > 98 S/cm
—
—
