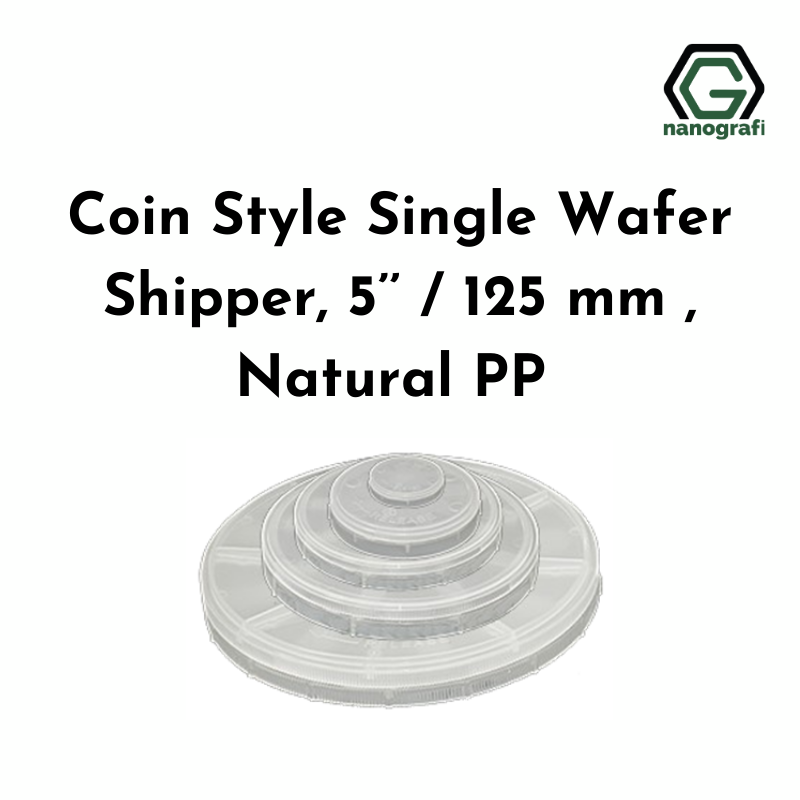

This coin style single wafer shipper is a cylindrical container for shipping, transporting and storing one 5'' / 125 mm wafer. It is intended mainly for thin silicon wafers, and the same design also suits glass, quartz, sapphire, GaAs and other thin round wafers.
The shipper is built from three parts: a base, a spider spring and a locking cap. The base has a concave interior, so the wafer touches it only at the edges. Once the screw-on cap is locked onto the base, the eight-point spring cushion keeps the wafer in place, face down, with positive closure. The design absorbs impact, the units stack, and loading and unloading work in both manual and automated handling.
The body is made of translucent, milky white natural polypropylene (PP). This material is insulating with a low dielectric constant and is not hygroscopic, with water absorption below 0.01%. It resists IPA and acetone.
- Shipping single 5'' silicon wafers between laboratories or fabrication sites.
- Storing individual semiconductor wafers with contact limited to the wafer edge.
- Transporting thin glass, quartz, sapphire or GaAs wafers of matching size.
- Holding wafers for manual or automated loading and unloading.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG01WS0105
- Wafer size: 5'' / 125 mm
- Material: Natural polypropylene (PP)
- Color: Translucent/milky white
- Capacity: One wafer, facedown
- Components: Base, spider spring, locking cap
- Spring cushion: Eight spring
- Water absorption: <0.01%
- Continuous use temperature limit: 55 C
- Melting temperature: 164 C
- Specific gravity: 0.9g/cm^3
- Chemical resistance: IPA OK, Acetone OK
- Features: Positive closure, stackable, screw-on lid
Keep the shipper below its continuous use temperature limit of 55 C. The polypropylene tolerates IPA and acetone, so these solvents can be used with it.
—
