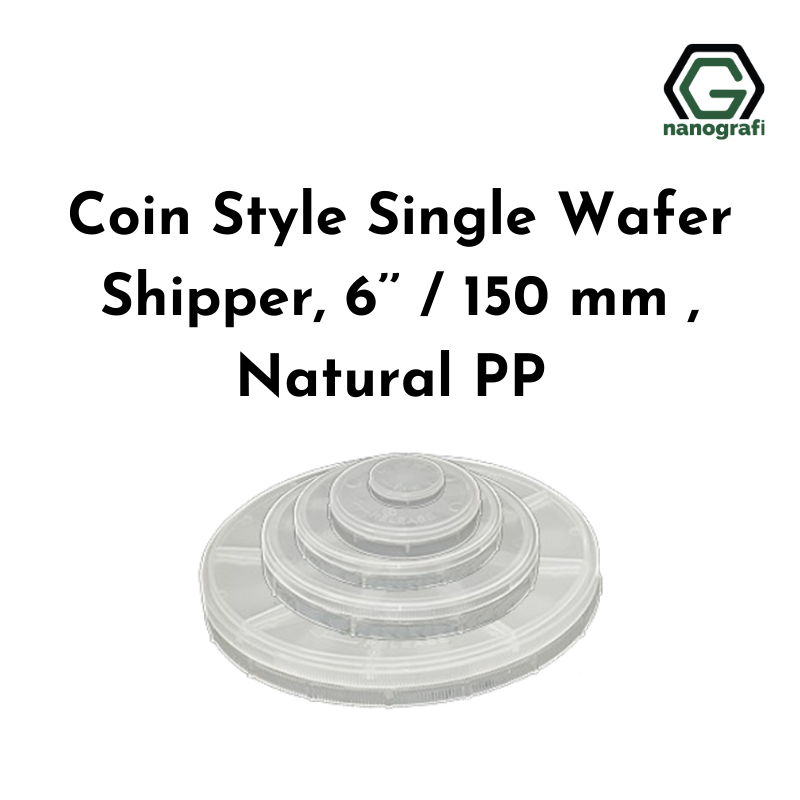

This coin style single wafer shipper is a cylindrical polypropylene container for shipping, transporting and storing one 6" (150 mm) wafer. It is primarily intended for thin silicon wafers. It also suits glass, quartz, sapphire, GaAs and other thin round wafers.
The shipper has three parts: a base, a spider spring and a locking cap. The base has a concave interior, so the wafer rests facedown and is contacted only at its edge. When the screw-on cap is locked, an eight-point spring cushion keeps the wafer in place and helps absorb impact. The positive closure gives secure packing. The units are stackable and support easy manual or automated loading and unloading.
The body is made of natural translucent, milky white polypropylene. This material insulates, is not hygroscopic and tolerates IPA and acetone.
- Shipping individual 6" (150 mm) silicon wafers between labs or facilities.
- Storing single semiconductor wafers with edge-only contact on the wafer face.
- Transporting thin glass, quartz, sapphire or GaAs round wafers.
- Manual or automated wafer loading and unloading workflows.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG01WS0104
- Wafer Size: 6” / 150 mm
- Dimensions: Ø160 x 20 mm
- Material: Natural translucent PP
- Colour: Translucent/milky white
- Components: Base, spider spring and locking cap
- Capacity: Holds one wafer facedown
- Wafer Retention: Eight spring cushion
- Closure: Screw-on lid, positive closure
- Water Absorption: <0.01%
- Continuous Use Temperature Limit: 55 C
- Melting Temperature: 164 C
- Specific Gravity: 0.9g/cm^3
- Chemical Resistance: IPA OK, Acetone OK
- Stackable: Yes
Keep the shipper within its continuous use temperature limit of 55 C. The polypropylene body withstands IPA and acetone. Lock the screw-on cap fully so the spring holds the wafer securely.
—
