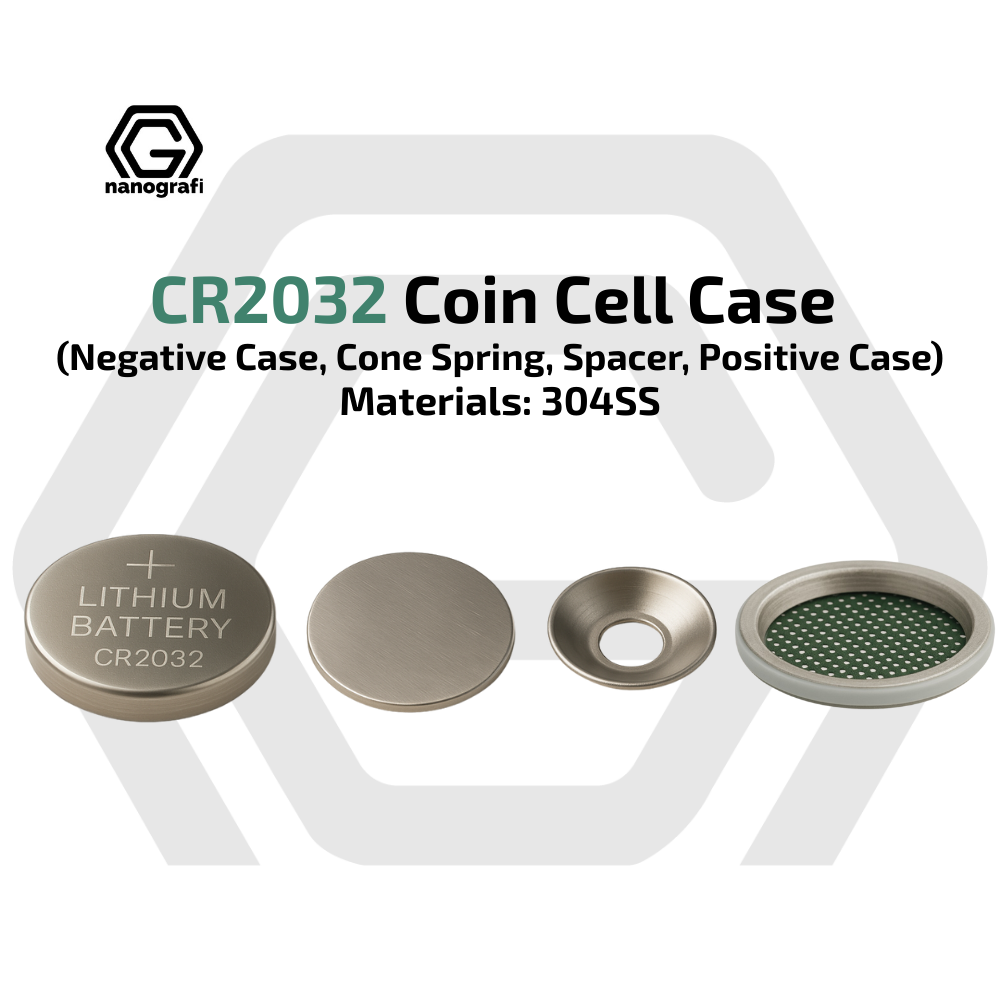

These CR2032 coin cell cases are complete hardware sets for building coin-format test cells in battery research laboratories. Every set supplies one negative case, one cone spring, one steel spacer and one positive case, so electrode materials can be assembled into cells and evaluated without sourcing parts separately.
All components are made from 304 stainless steel (304SS), chosen for its mechanical durability, strong corrosion resistance and dependable sealing during assembly and testing. The cone spring maintains contact pressure between the electrodes, while the spacer spreads that pressure evenly across the cell stack. Sealing is provided by a polypropylene (PP) gasket.
The assembled case measures 20 mm x 3.2 mm (diameter x height), matching the standard CR2032 format, in which "20" refers to the 20 mm diameter and "32" to the 3.2 mm thickness. This format is widely used in R&D for electrode material testing and prototype battery assembly. Sets are offered in packs of 100, 250 and 500.
- Assembling coin cells for battery research and development.
- Testing prototypes of rechargeable coin cells.
- Evaluating new electrode materials in a standard cell format.
- Fabricating batteries at laboratory scale.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | 100 sets, 250 sets, 500 sets |
| Physical form | — |
| Storage | — |
- Product code: NG08BE0101
- Product code: NG08BE0101
- Material: 304SS
- Dimensions (Dia x Height): 20 mm x 3.2 mm
- Weight: 3.40 grams
- 304SS Spacer: 15.8*0.5 mm
- Cone Spring: 15.4*1.1 mm
- Sealing Gasket: Polypropylene (PP)
- Thickness of Negative and Positive Case: 0.25 mm +/- 0.02 mm
- Set contents: Negative case (x1), cone spring (x1), steel spacer (x1), positive case (x1)
—
—
