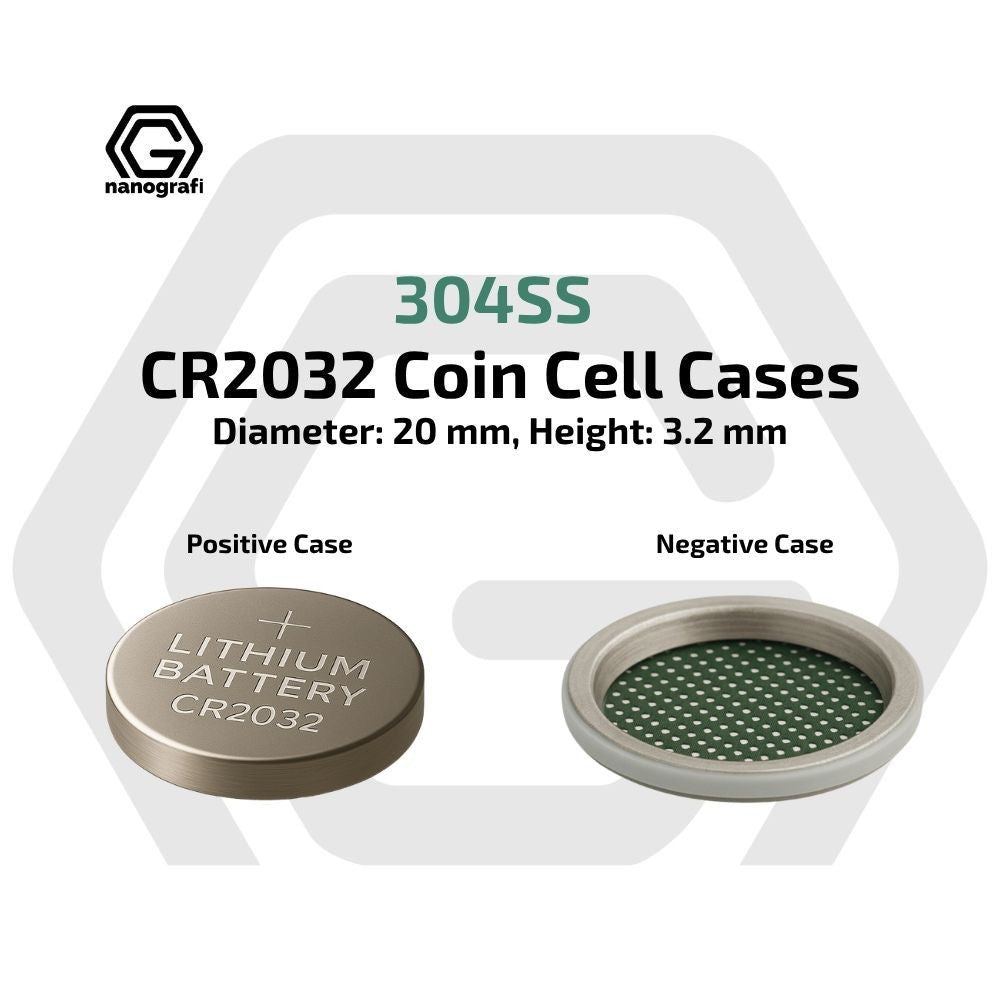

These CR2032 coin cell cases are battery housings made from 304 stainless steel (304SS), supplied with both the positive and the negative case. Each set measures 20 mm in diameter and 3.2 mm in height, giving researchers a standard format for building coin-type test cells.
The stainless steel offers strong corrosion resistance and tight dimensional precision, so cells can be assembled consistently for lithium-ion and other electrochemical chemistries. Both case halves are 0.25 mm +/- 0.02 mm thick, and a polypropylene (PP) sealing gasket keeps the assembled cell leak-proof.
The cases suit laboratory research, prototype building and electrode development work, including longer test runs where the cell must stay stable in aggressive electrolytes.
- Building CR2032 coin cells for lithium-ion and solid-state battery studies.
- Evaluating electrode and electrolyte materials in laboratory research.
- Producing precision housings for pilot-scale battery prototypes.
- Developing new rechargeable batteries and electrode materials.
- Long-duration cell testing with aggressive electrolytes, sealed by the PP gasket.
- Coin cells for compact electronics such as watches, medical devices, sensors and portable devices.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG04CO08015
- Diameter: 20 mm
- Height: 3.2 mm
- Weight: 3.4 g
- Material: 304SS
- Thickness of Negative Case and Positive Case: 0.25 mm +/- 0.02 mm
- Sealing Gasket: Polypropylene (PP)
—
—
