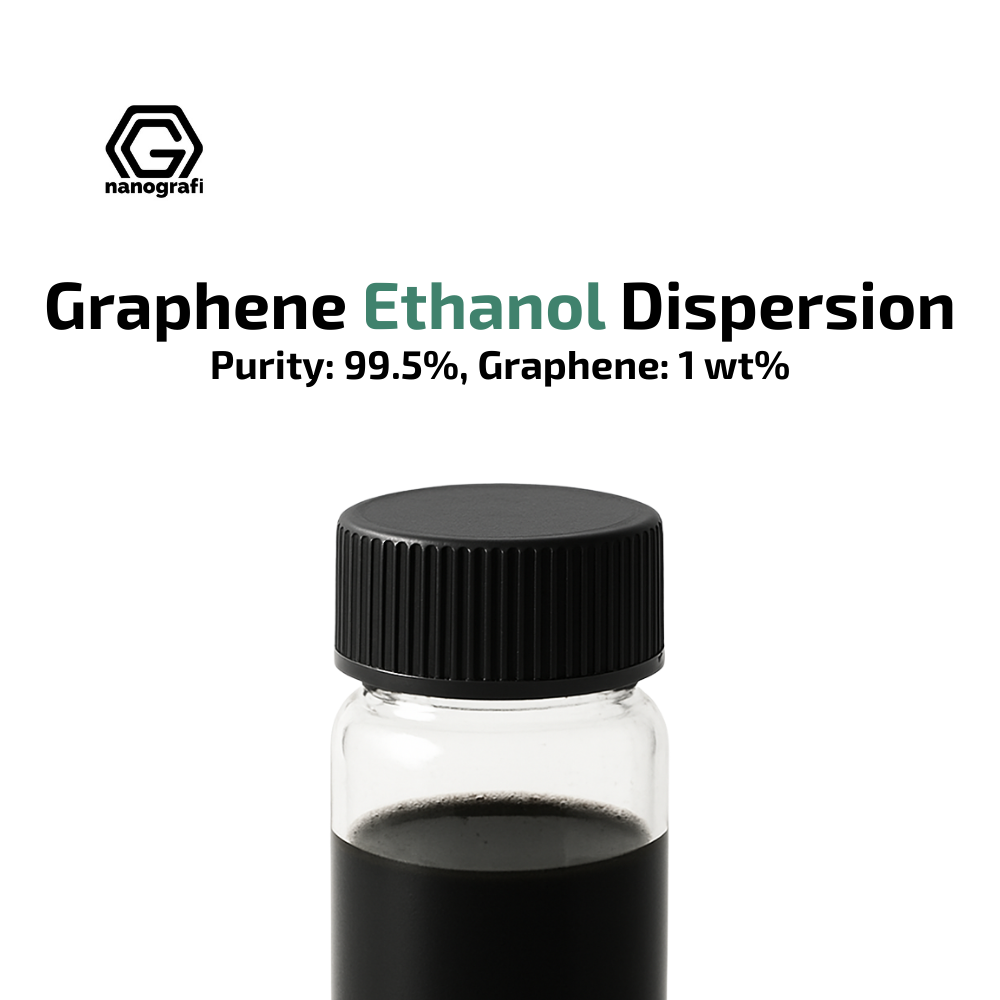

This graphene ethanol dispersion from Nanografi supplies graphene at a 1 wt% concentration in ethanol, giving labs a convenient liquid form for preparing coatings, composites and other functional materials. Working with a dispersion rather than dry powder supports environmentally safer handling of graphene.
The graphene is produced by bath sonication of natural graphite flakes in ethanol mixtures, a liquid phase exfoliation route. The resulting sheets have a purity of 99.5%, a thickness of 0.6-1.2 nm, lateral diameters of 2.0-12.0 µm and a specific surface area of 600-1200 m2/g. Elemental analysis shows 99.6% carbon and less than 0.4% oxygen, and the dispersion contains a surfactant.
According to the manufacturer, this material has outperformed commercial nano graphite at much lower loadings. It appears as a black liquid and is offered in 30 ml, 60 ml, 120 ml, 500 ml and 1000 ml packs.
- Formulating graphene-containing coatings from a ready-to-use liquid.
- Reinforcing or modifying composites at low filler loadings.
- Developing other graphene-based materials in research and development.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | 99.5% |
| Category | — |
| Pack sizes | 30 ml, 60 ml, 120 ml, 500 ml, 1000 ml |
| Physical form | Black Liquid |
| Storage | — |
- Product code: NG04EO0727
- Graphene Thickness: 0.6-1.2 nm
- Diameter: 2.0-12.0 µm
- Concentration: 1 wt%
- Specific Surface Area: 600-1200 m2/g
- Elemental Analysis (C): 99.6%
- Elemental Analysis (O): <0.4%
- Surfactant: Yes
- Solvent: Ethanol
- Production Method: Bath sonication of natural graphite flakes in ethanol mixtures
—
—
