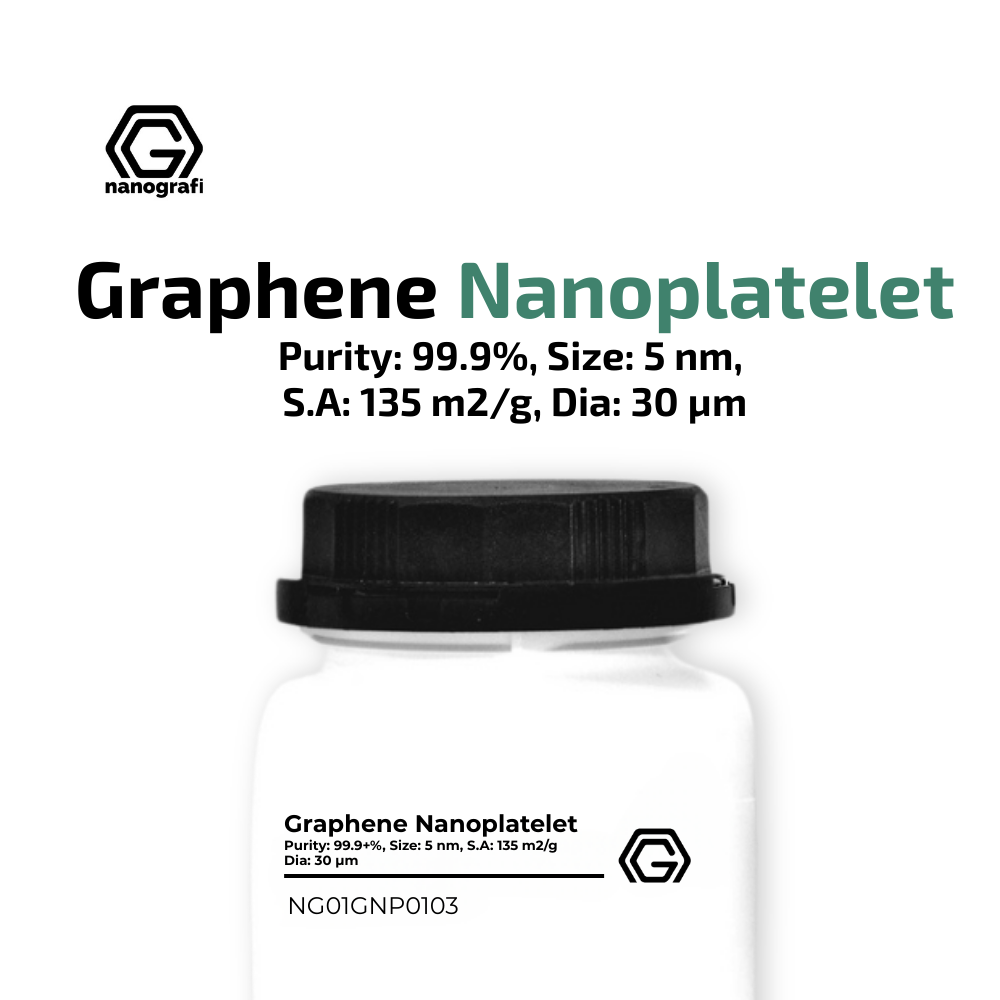

This Nanografi graphene nanoplatelet (GNP) is a gray powder of 99.9+% purity made up of short stacks of flat, plate-like graphene sheets. Each platelet has a thickness of 5 nm and a diameter of 30 μm, with a specific surface area of 135 m2/g.
Because the material is purely graphitic, it carries both heat and electricity very well, with a stated conductivity of 1100-1600 s/m. Added to a host material, the platelets raise thermal and electrical conductivity, improve stability and strengthen barrier performance.
The main use is as a high-performance additive in plastics and rubbers. Loadings of about 2-6wt% are typical when the goal is mechanical improvement, while about 2-8wt% is typical for conductivity modification. Graphene blended into plastics such as epoxy is also being explored as a lighter structural alternative to steel in aircraft, and as a conductive surface coating against lightning damage.
- Additive for composites based on PPO, POM, PPS, PC, ABS, PP, PE, PS, nylon and rubbers.
- Improving tensile strength, stiffness, corrosion resistance and abrasion resistance of composites at typical loadings of about 2-6wt%.
- Modifying electrical conductivity and anti-static behaviour of composites at typical loadings of about 2-8wt%.
- Enhancing thermal conductivity and lubricant properties of polymer materials.
- Research into graphene-epoxy materials as lightweight replacements for steel in aircraft structures and as conductive coatings against lightning strike damage.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | 99.9+ % |
| Category | — |
| Pack sizes | 5 grams, 25 grams, 100 grams, 500 grams, 1000 grams |
| Physical form | — |
| Storage | — |
- Product code: NG01GNP0103
- Thickness: 5 nm
- Diameter: 30 μm
- Specific Surface Area: 135 m2/g
- Conductivity: 1100-1600 s/m
- Color: Gray
- Product Code: NG01GNP0103
—
—
