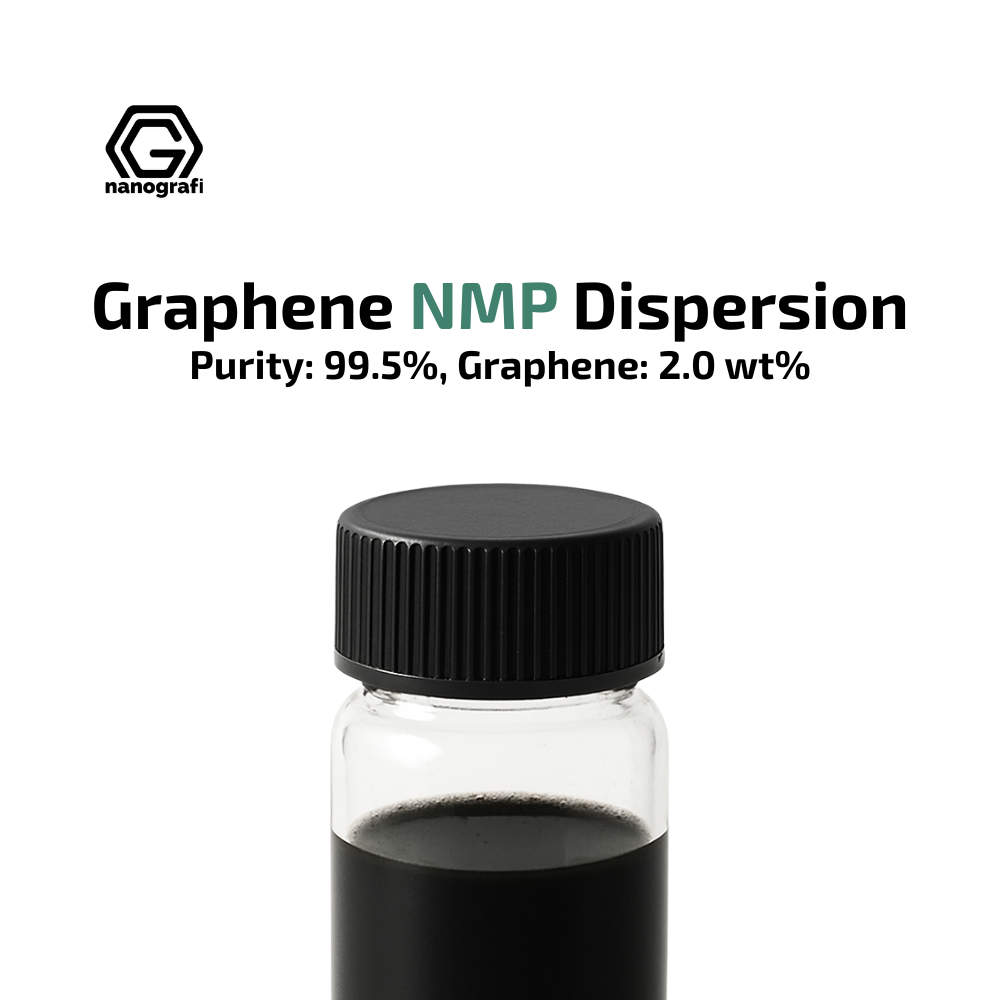

This Nanografi product is a ready-to-use dispersion of graphene in NMP, supplied as a black liquid with a graphene concentration of 2 wt%. The graphene itself has a purity of 99.5%, making the dispersion a convenient starting material for labs working on conductive films, coatings and energy devices.
The dispersed graphene sheets are 0.6-1.2 nm thick with lateral diameters of 2.0-12.0 µm, and offer a specific surface area of 600-1200 m2/g. Elemental analysis shows 99.6% carbon and less than 0.4% oxygen. A surfactant is included in the formulation. The manufacturer characterises the material with SEM imaging and an FTIR spectrum of graphene produced by liquid phase exfoliation.
The dispersion is offered in 30 ml, 60 ml, 120 ml, 500 ml and 1000 ml packs.
- Preparation of conductive graphene films and transparent conductive coatings.
- Electrode material research for supercapacitors.
- Catalyst development and catalyst support studies.
- Solar energy device research.
- Exploratory work on graphene semiconductor chips and graphene computer memory.
- Biomaterials research.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | 99.5% |
| Category | — |
| Pack sizes | 30 ml, 60 ml, 120 ml, 500 ml, 1000 ml |
| Physical form | Black Liquid |
| Storage | — |
- Product code: NG04EO0725
- Graphene Thickness: 0.6-1.2 nm
- Diameter: 2.0-12.0 µm
- Concentration: 2 wt%
- Specific Surface Area: 600-1200 m2/g
- Elemental Analysis: C 99.6%, O <0.4%
- Surfactant: Yes
- Solvent: NMP
Refer to the manufacturer's MSDS for safe handling and storage of this NMP-based dispersion.
—
