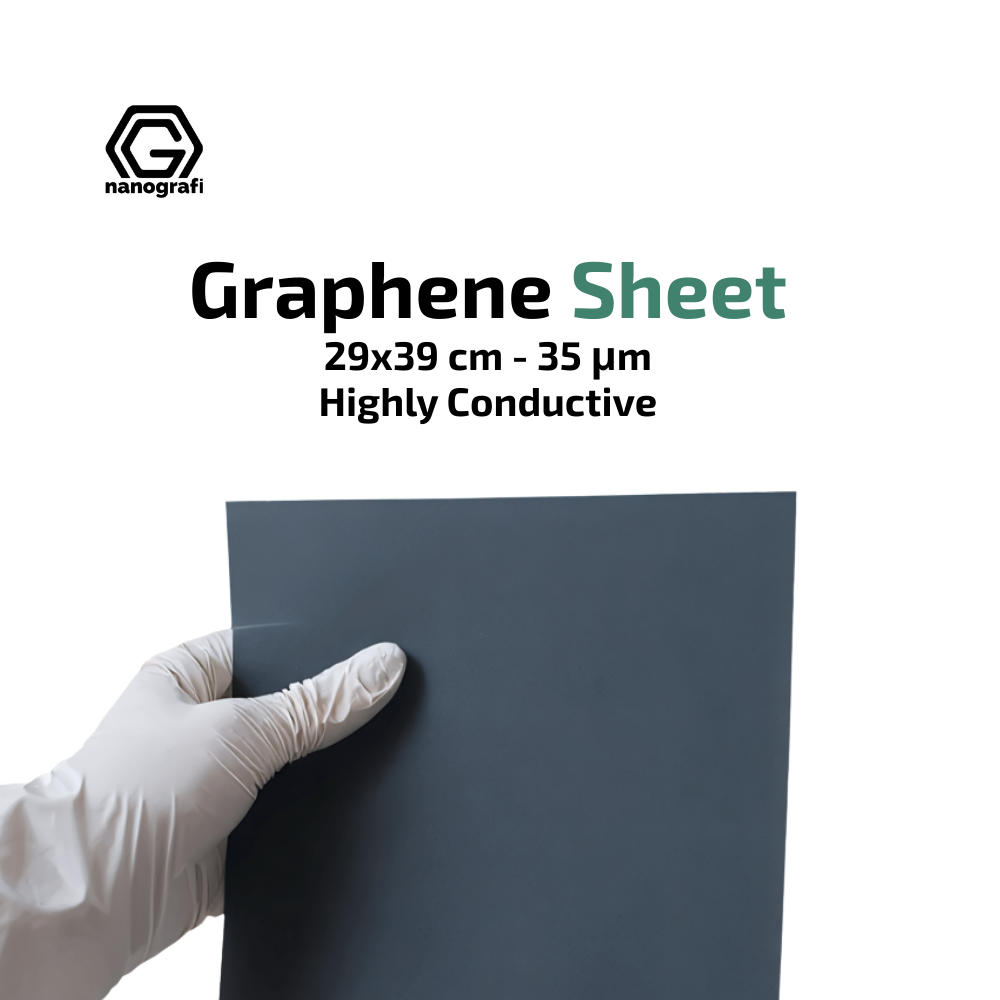

This Nanografi graphene sheet measures 29 cm x 39 cm with a thickness of 35 µm and is built for high electrical and thermal conductivity. It suits labs and engineering teams working on heat spreading, electromagnetic interference (EMI) shielding and electrode development for energy storage.
In-plane thermal conductivity is rated at 1300 - 1500 W/(m.K), and in-plane electrical conductivity lies in the 4*10^5 ~ 2*10^6 S/m range. Surface resistivity is 0.06 Ω/sq, and EMI shielding effectiveness reaches 53 - 58 dB between 30 MHz and 1.5 GHz. The sheet has a density of 1.6 - 2.0 g/cm³, a tensile strength of 10 MPa and a maximum operating temperature of 450 °C. It is RoHS compliant.
Graphene consists of carbon atoms arranged in a tightly packed hexagonal lattice and conducts electricity well at room temperature. It is also used as a filler to improve the electrical and mechanical behaviour of composites, and it is of interest for biomaterials, biosensors, biomedical devices and drug delivery research.
- Thermal management and heat spreading in consumer electronics such as smartphones, tablets, PCs and TVs.
- EMI shielding for electronic, automotive, military and aerospace assemblies.
- Electrodes for batteries and supercapacitors in energy storage development.
- Heat spreading in LED lighting systems.
- Conductive filler for improving electrical and mechanical properties of composite materials.
- Research on biosensors, biomedical devices and drug delivery.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG01GS0102
- Size: 29 x 39 cm
- Thickness: 35 µm
- Thermal Conductivity In Plane: 1300 - 1500 W/(m.K)
- Density: 1.6 - 2.0 g/cm³
- Tensile Strength: 10 MPa
- Electrical Conductivity In Plane: 4*10^5 ~ 2*10^6 S/m
- EMI Shielding (30 MHz - 1.5 GHz): 53 - 58 dB
- Surface Electrical Resistivity: 0.06 Ω/sq
- Max Operating Temperature: 450 °C
- RoHS Compliant: Yes
—
—
