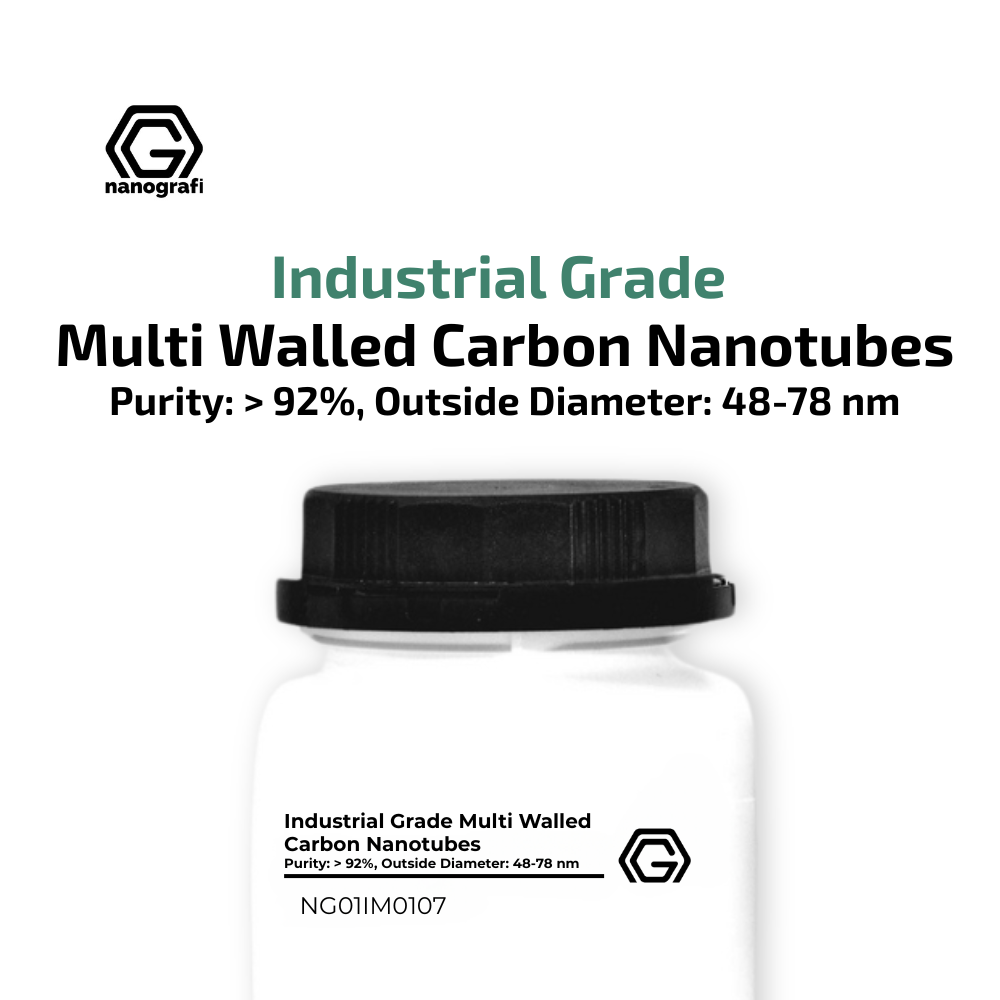

These industrial grade multi walled carbon nanotubes (MWCNTs) from Nanografi are intended for large-scale work where a dependable, economical carbon nanotube powder is needed. The black material has a purity above 92%, an outside diameter of 48-78 nm, an inside diameter of 5-15 nm and tube lengths of 10-30 µm.
Production by Chemical Vapor Deposition (CVD) gives consistent quality from batch to batch. The nanotubes show an electrical conductivity of 98 S/cm and a specific surface area of 50 m2/g, which makes them a practical additive for composites, coatings, battery materials and conductive formulations.
Typical data include a tap density of 0.15 g/cm3, a true density of 2.2 g/cm3 and an ash content of 9 wt%. The product is offered in 25 g, 100 g, 500 g and 1000 g packs.
- Reinforcing polymer and other composites with carbon nanotubes.
- Adding conductivity to coatings and conductive materials.
- Electrode materials for lithium-ion batteries and supercapacitors.
- Catalysis research and use as a catalytic support.
- Development of biosensors, diagnostic devices and nanoprobes.
- Research on hydrogen storage, solar cells, transistors and flat panel displays.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | > 92 % |
| Category | — |
| Pack sizes | 25gr, 100gr, 500gr, 1000gr |
| Physical form | — |
| Storage | — |
- Product code: NG01IM0107
- Product code: NG01IM0107
- Color: black
- Outside Diameter: 48-78 nm
- Inside Diameter: 5-15 nm
- Length: 10-30 µm
- Tap Density: 0.15 g/cm3
- True Density: 2.2 g/cm3
- Specific Surface Area (SSA): 50 m2/g
- Ash: 9 wt%
- Electrical Conductivity: 98 S/cm
- Manufacturing Method: CVD
—
—
