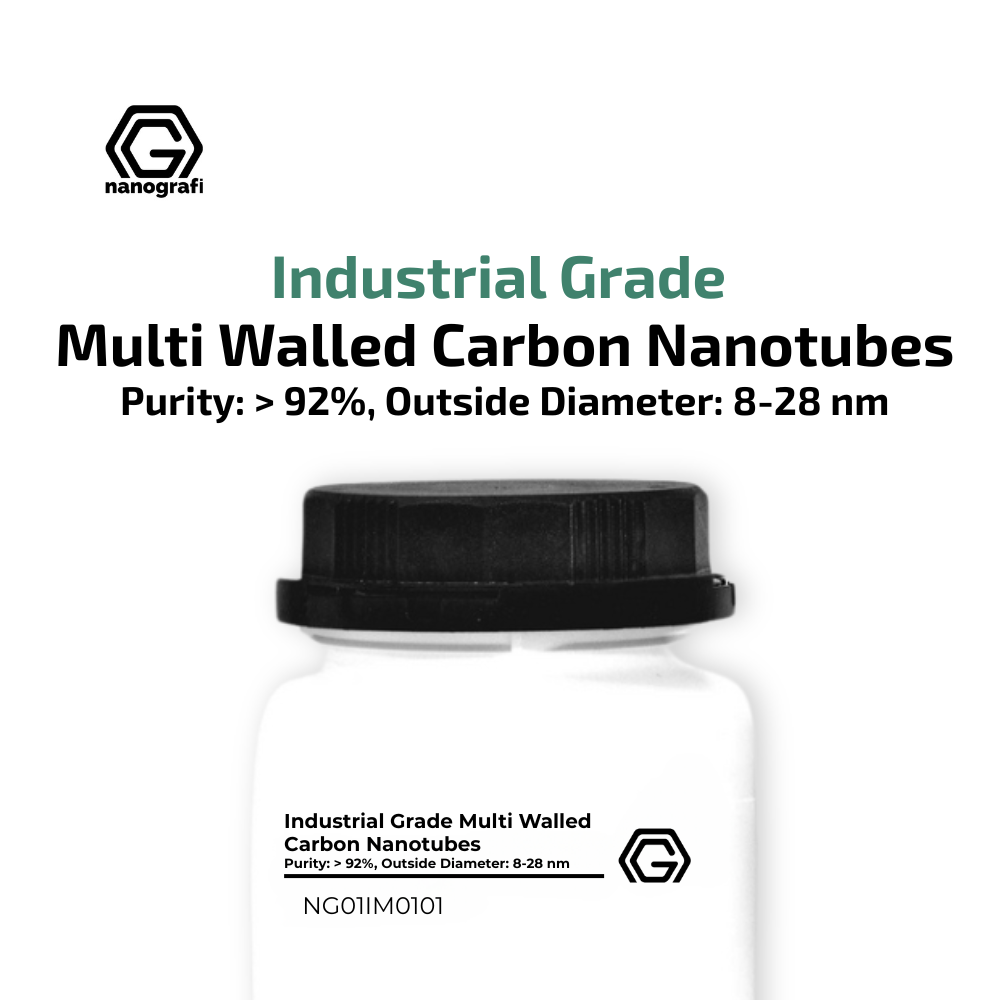

Nanografi's Industrial Grade Multi Walled Carbon Nanotubes (MWCNTs) are a black, CVD-produced nanotube powder with a purity above 92%. The grade is designed to balance performance against cost, which makes it a practical choice where nanotubes are needed in larger volumes.
The tubes have an outside diameter of 8-28 nm, an inside diameter of 5-10 nm and a length of 10-35 µm. With a specific surface area of 220 m2/g and an electrical conductivity of 98 S/cm, they provide dependable conductivity together with good mechanical strength.
Typical uses include reinforcing composite materials, building battery components and producing conductive films, alongside a wide range of other industrial and research technologies. The material is offered in 25gr, 100gr, 500gr and 1000gr packs.
- Reinforcement of polymer and ceramic composites with carbon nanotubes.
- Conductive additive for lithium-ion and next-generation batteries.
- Electrode material for supercapacitors and ultracapacitors.
- Conductive films and flat panel display coatings.
- Catalysis and catalytic support materials.
- Biosensors, diagnostic tools and drug delivery system research.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | > 92 % |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG01IM0101
- Color: black
- Outside Diameter: 8-28 nm
- Inside Diameter: 5-10 nm
- Length: 10-35 µm
- Tap Density: 0.15 g/cm3
- True Density: 2.2 g/cm3
- Specific Surface Area (SSA): 220 m2/g
- Ash: 9 wt%
- Electrical Conductivity: 98 S/cm
- Manufacturing Method: CVD
—
—
