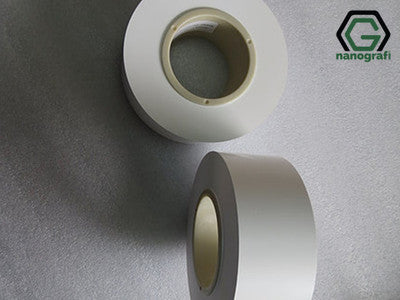

This Li-ion battery separator film from Nanografi is a porous polypropylene (PP) membrane intended for building lithium-ion cells in research and development work. Each roll holds 500 m of film with a width of 60 mm and a thickness of 25±2 μm.
The film has a porosity of 42±3 % and an areal density of 13.2±1.0 g/m2, with air permeability of 350±100 s/100ml. Mechanically, it offers a puncture strength of at least 400 g and tensile strength of ≥1400 Kgf/cm2 in the machine direction and ≥130 Kgf/cm2 in the transverse direction.
Dimensional stability under heat is also specified: after 115℃ for 16 hours, shrinkage stays at or below 3.0 % in the machine direction and 0.5 % in the transverse direction. Lithium-ion technology is a leading choice for energy storage where high energy density, long cycle life and efficient charge/discharge are needed, such as hybrid and electric vehicles.
- Serves as the separator between electrodes when assembling lithium-ion test cells in battery R&D.
- Supports development of lithium-ion cells for electric energy storage systems.
- Useful in research on batteries aimed at hybrid and electric vehicle applications.
| Brand | Nanografi |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: NG04CO08032
- Material: Polypropylene (PP)
- Porosity: 42±3 %
- Thickness: 25±2 μm
- Width: 60 mm
- Length per roll: 500 m
- Areal density: 13.2±1.0 g/m2
- Air permeability: 350±100 s/100ml
- Puncture strength: ≥400 g
- Tensile strength: MD: ≥1400 Kgf/cm2; TD: ≥130 Kgf/cm2
- Thermal contraction (115℃/16H): MD: ≤3.0 %; TD: ≤0.5 %
—
—
