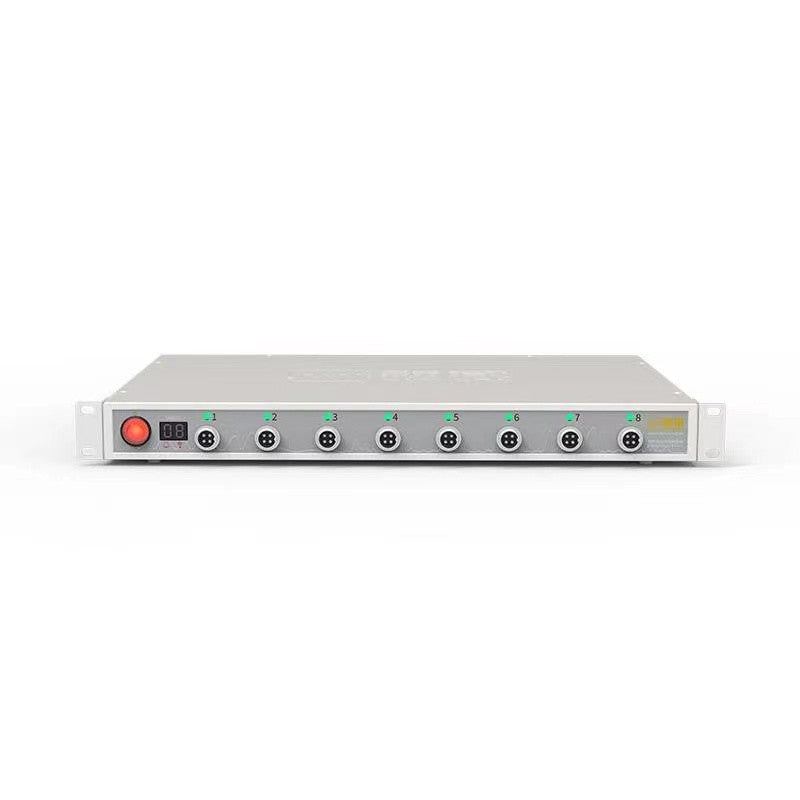

This package combines the Neware CT-4008Tn-5V10mA-HWX battery tester with a control unit. The tester has 8 independent channels at up to 5 V and 10 mA, designed for coin cells, half-cells, supercapacitors and other low-capacity electrochemical cells in materials research.
—
| Brand | — |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Voltage range: 25 mV to 5 V (discharge minimum −5 V); accuracy ±0.05% F.S.
- Current ranges: 5 µA–1 mA, 1–5 mA, 5–10 mA; accuracy ±0.05% F.S.
- Resolution: AD 24-bit, DA 16-bit; 4-wire connection
- Charge modes CCC, CVC, CC&CVC, CPC; discharge modes CCD, CVD, CC&CVD, CPD, CRD
- Pulse mode down to 500 ms pulse width; DCIR calculation with custom access points
- Minimum recording interval 100 ms; up to 65,535 cycles and 254 steps per test
- Power-off data protection and off-line operation; MySQL database, Ethernet, export to Excel and TXT
—
—
