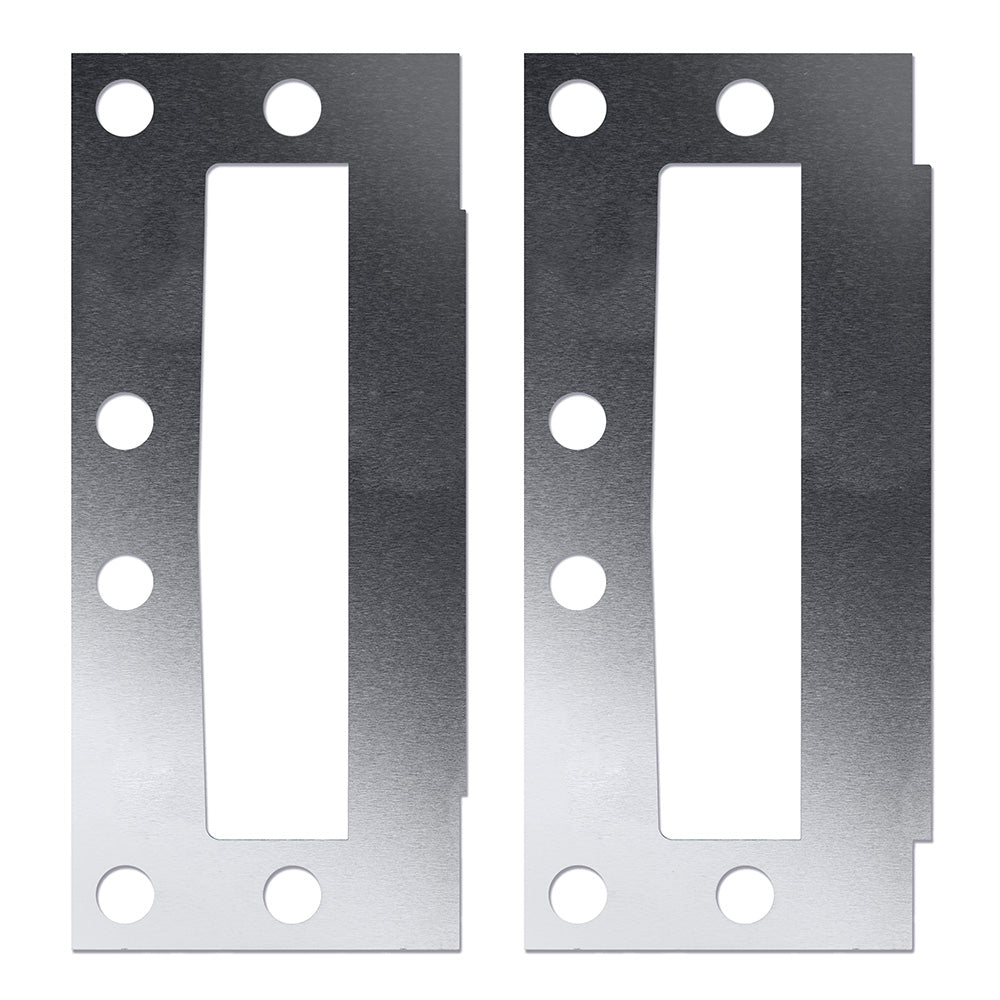

These meniscus guides are stainless steel accessories for the Ossila 100 mm standard slot die head. Their job is to pin the edges of the coating so the deposited film has a clearly defined width during slot die coating.
Each pack contains 3 guides. The range is offered with set coating widths, lip depths of 0.5 mm, 1 mm or 1.5 mm, and guide thicknesses of 0.05 mm or 0.1 mm, letting users pick a configuration that fits their process. This catalogue item, L3005N2-75, corresponds to the 75 mm coating width option. The guides are suited to inks and solutions across a viscosity range of 0 – 1000 cPs.
Custom versions are also available for more specific needs, including designs that enable multi-strip coatings. The guides form part of a wider slot die coating accessory range that includes slot die heads and shims.
- Pinning the coating width on an Ossila 100 mm standard slot die head for better defined films.
- Slot die coating of solutions with viscosities between 0 and 1000 cPs.
- Producing multi-strip coatings with custom guide designs.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005N2-75
- Compatible with: Ossila 100 mm standard slot die head
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
