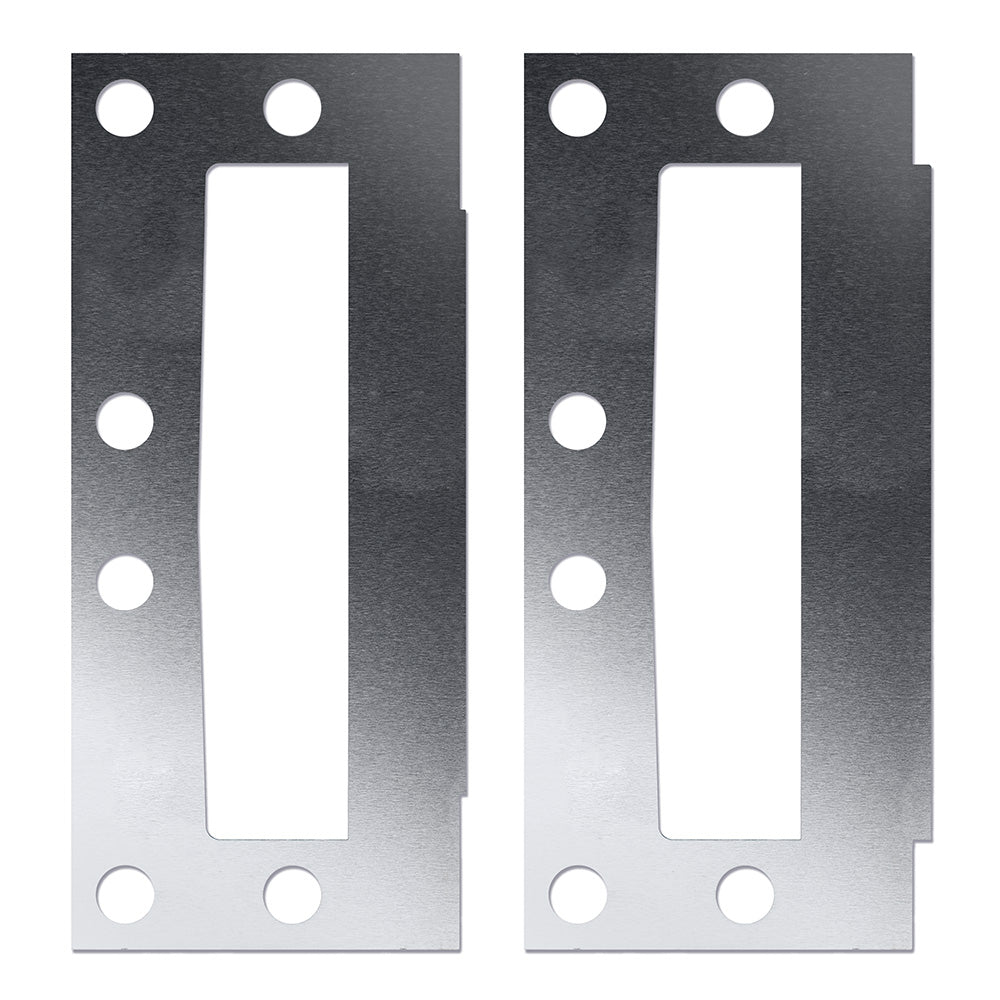

These meniscus guides are stainless steel accessories for the Ossila 100 mm standard slot die head. Fitted to the head, they pin the edges of the coating meniscus so that the deposited film has a well-defined width during slot die coating.
Guides are supplied in packs of 3 and come with set coating widths, lip depths and thicknesses, so users can match the guide to the film they need to produce. Guide thickness options are 0.05 mm and 0.1 mm, and lip depths of 0.5 mm, 1 mm and 1.5 mm are offered. This catalogue item, L3005N3-75, corresponds to the 75 mm coating width option. The guides suit inks and solutions in a viscosity range of 0 – 1000 cPs.
Where a standard configuration does not fit the job, custom versions can be made, including designs for multi-strip coatings. The guides work alongside the other parts of the Ossila slot die coating range, such as slot die heads and shims, which also help control coating width.
- Pinning the coating width when depositing thin films with an Ossila 100 mm slot die head.
- Producing better defined film edges in slot die coating of solutions from 0 to 1000 cPs.
- Multi-strip slot die coating using custom guide designs.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005N3-75
- Compatible with: Ossila 100 mm standard slot die head
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Coating Width: 75 mm
- Number per Pack: 3
—
—
