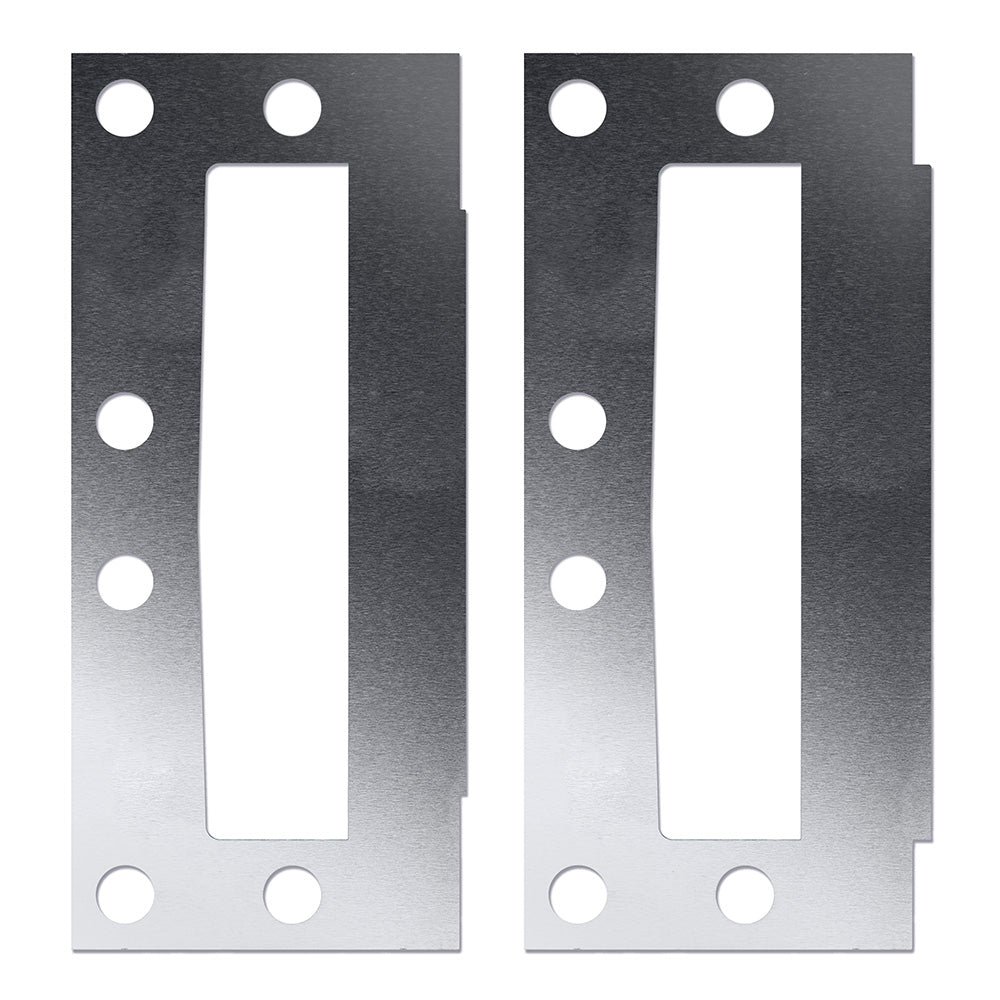

These 100mm meniscus guides from Ossila are accessories for slot die coating that fix, or pin, the width of the coated area. Holding the meniscus at a set width gives a more sharply defined film edge during deposition.
The guides are made of stainless steel and fit the Ossila 100 mm standard slot die head. They come in packs of 3 and are offered with predefined coating widths, guide thicknesses of 0.05 mm or 0.1 mm, and lip depths of 0.5 mm, 1 mm or 1.5 mm, so the setup can be matched to the coating job. They are suited to inks across a viscosity range of 0 – 1000 cPs.
Custom versions are also available for more specific needs, including designs that allow multi-strip coatings. The guides sit within a wider slot die coating range that also includes slot die heads and shims for defining the width of deposited films.
- Pinning the coating width to produce a better defined film in slot die coating.
- Controlling coating width on the Ossila 100 mm standard slot die head.
- Coating with inks or solutions in the 0 – 1000 cPs viscosity range.
- Producing multi-strip coatings when using custom guide options.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005R1-100
- Compatible with: Ossila 100 mm standard slot die head
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
