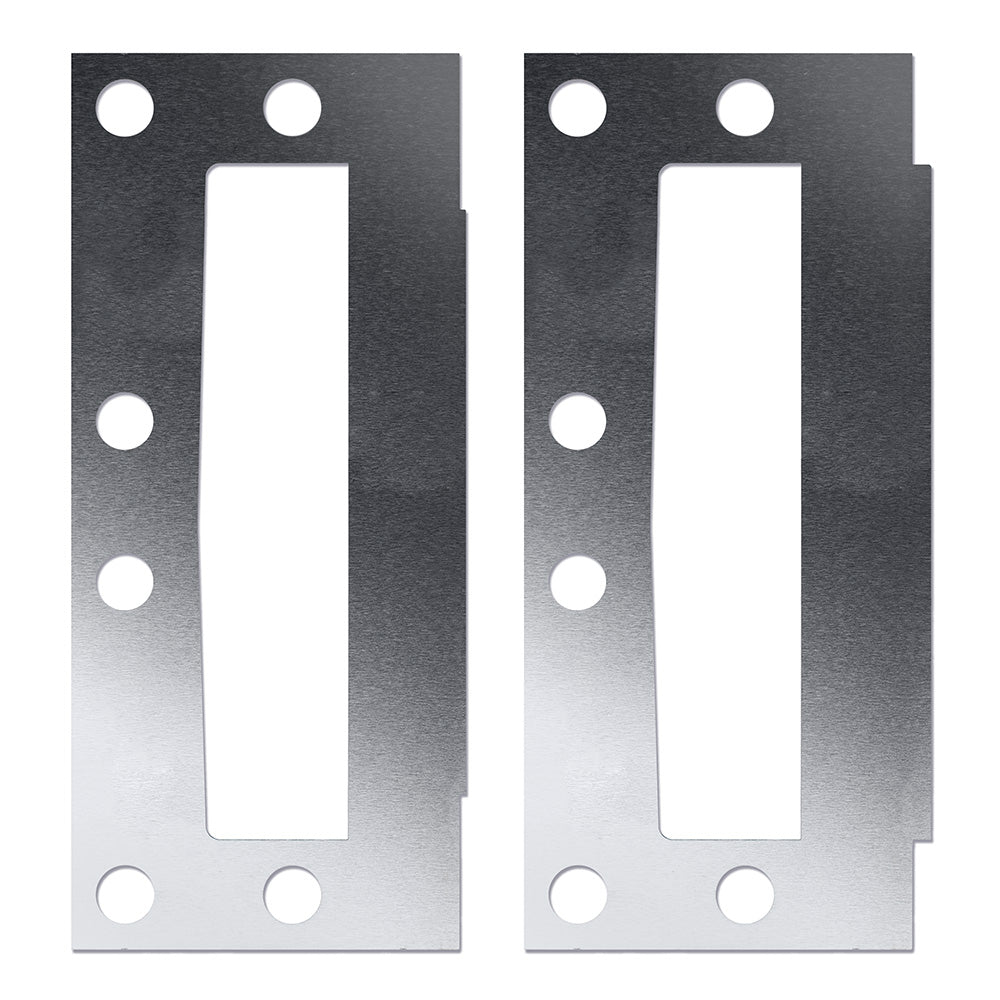

These meniscus guides are accessories for slot die coating that fit the Ossila 100 mm standard slot die head. Their role is to pin the edges of the coating meniscus so the coated width stays fixed, giving a more sharply defined film.
The guides are made from stainless steel and are suited to inks and solutions across a viscosity range of 0 – 1000 cPs. They come in packs of 3, with predefined coating widths and a choice of guide thickness (0.05 mm or 0.1 mm) and lip depth (0.5 mm, 1 mm or 1.5 mm), so the set can be matched to the coating job. Product code L3005R2-75 corresponds to the 75 mm coating width option.
Custom versions are also offered for more specific needs, including designs that allow multi-strip coatings. The guides can be combined with slot die heads and shims from the same range to further define the width of the deposited film.
- Pinning the coating width during slot die coating with the Ossila 100 mm standard slot die head.
- Producing films with better defined edges and a controlled coated width.
- Coating inks and solutions with viscosities between 0 and 1000 cPs.
- Multi-strip slot die coating using custom guide designs.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005R2-75
- Compatible with: Ossila 100 mm standard slot die head
- Coating Width: 75 mm
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
