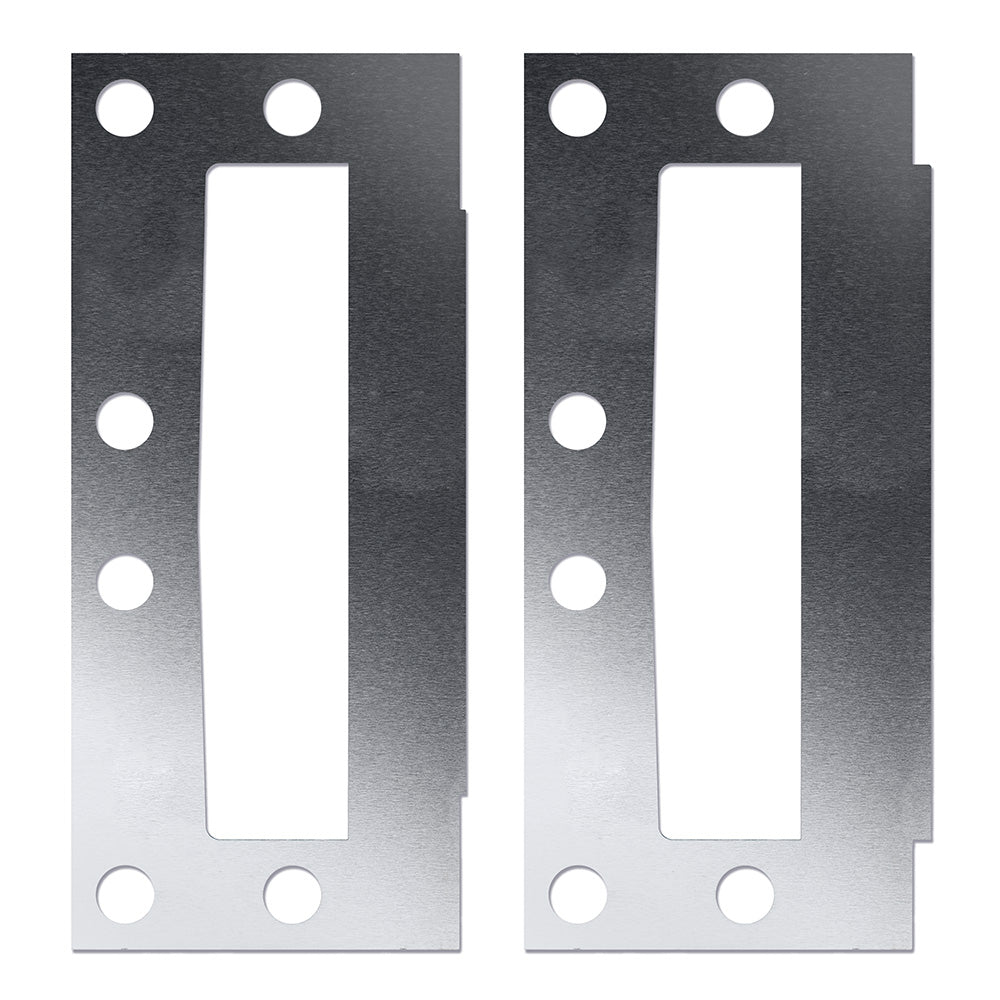

These meniscus guides fit the Ossila 100 mm standard slot die head and help fix the edges of the coating bead, so the deposited film has a well-defined width. Product code L3005R3-75 corresponds to a 75 mm coating width.
Made from stainless steel, the guides are supplied in packs of 3 and suit inks with viscosities from 0 to 1000 cPs. Across the range, guides come in thicknesses of 0.05 mm or 0.1 mm and lip depths of 0.5 mm, 1 mm or 1.5 mm, letting users match the guide to their coating conditions. Custom versions are also offered for multi-strip coating layouts.
They form part of the Ossila slot die coating accessory range, alongside slot die heads and shims that also help control the width of the coated film.
- Pinning the coating width during slot die coating with the Ossila 100 mm standard slot die head.
- Producing thin films with better defined edges and width.
- Multi-strip coating when used in custom guide configurations.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005R3-75
- Compatible with: Ossila 100 mm standard slot die head
- Coating Width: 75 mm
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
