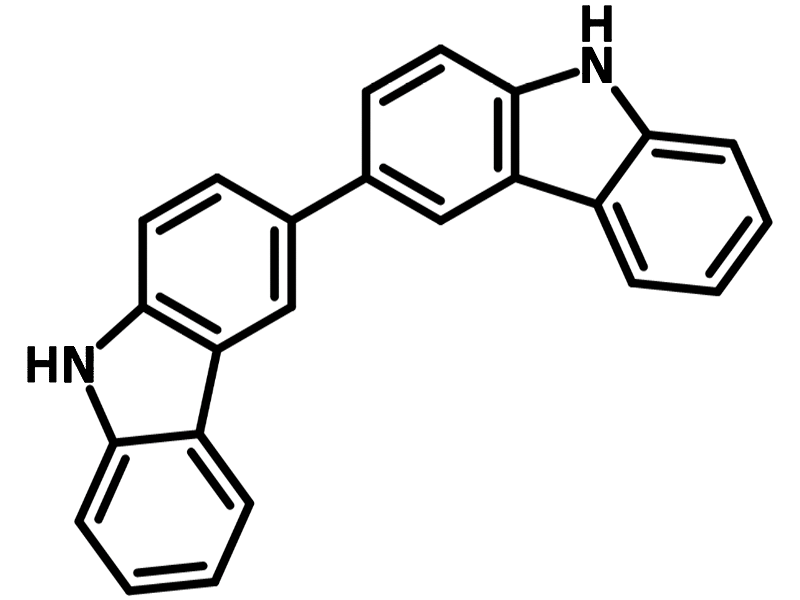

3,3'-Bicarbazole (CAS 1984-49-2, C24H16N2) is a heterocyclic building block made of two carbazole units linked at their 3,3'-positions. It is used to synthesise hole transport materials, host materials and TADF emitters for organic light-emitting devices (OLEDs), as well as materials for perovskite solar cells and organic photovoltaics.
Linking the carbazole units at the 3,3'-positions extends the π-conjugation of the molecule. It also partly blocks these electron-active sites, which improves stability. Derivatives built on this core have been reported as bipolar phosphorescent hosts, as exciplex-forming hosts in single-emissive-layer white OLEDs, and as the hole transporting material BczPh (NP-BC) in p–i–n perovskite solar cells reaching a PCE of almost 20%.
Ossila supplies the material at >98% purity, confirmed by 1H NMR, as an off-white to grey powder or crystals.
- Synthesis of hole transport layer materials for OLEDs and perovskite solar cells.
- Preparation of bipolar host materials for phosphorescent OLEDs.
- Development of TADF emitting layer materials.
- Building exciplex-forming hosts for single-emissive-layer white OLEDs.
- Research on organic photovoltaic materials based on bicarbazole cores.
| Brand | Ossila |
|---|---|
| CAS number | 1984-49-2 |
| Molecular formula | C24H16N2 |
| Purity | >98% (1H NMR) |
| Category | — |
| Pack sizes | 5 g, 10 g, 25 g, 50 g |
| Physical form | Off-white to grey powder/crystals |
| Storage | — |
- Product code: B1431
- Molecular Weight: 332.41 g/mol
- Synonyms: 9H,9'H-3,3'-Bicarbazole, 3,3'-Bi-9H-carbazole; 9H,9H-[3,3]Bicarbazolyl
- Classification: Bicarbazole derivatives, Semiconductor synthesis intermediates, Heterocyclic building blocks
—
—
