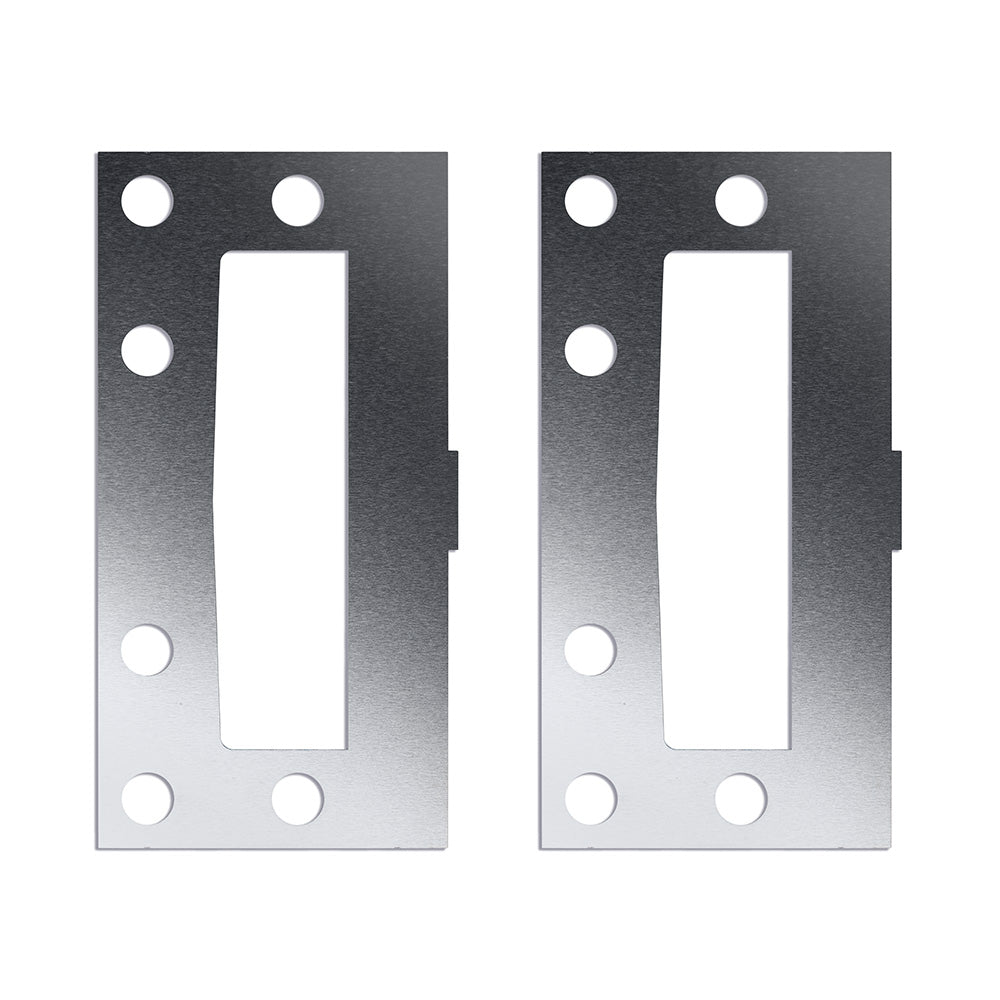

These Ossila meniscus guides (L3005M3-22) are stainless steel inserts for the Ossila 50 mm standard slot die head. Their job is to pin the edges of the coating meniscus so that the deposited film has a well defined width during slot die coating.
Each pack contains 3 guides. The range comes in set coating widths, lip depths and guide thicknesses, with guide thicknesses of 0.05 mm or 0.1 mm and lip depths of 0.5 mm, 1 mm or 1.5 mm, so the guide can be matched to the coating job. They suit inks across a viscosity range of 0 – 1000 cPs.
Where a standard configuration does not fit, custom versions can be made, including designs for coating multiple strips at once. The guides sit alongside slot die heads and shims in the Ossila slot die coating range, letting users build up a setup tailored to their films.
- Pinning the coating width when depositing films with the Ossila 50 mm slot die head.
- Producing thin films with better defined edges in slot die coating.
- Adapting coating width, lip depth and guide thickness to specific coating requirements.
- Multi-strip slot die coating using custom guide designs.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005M3-22
- Compatible with: Ossila 50 mm standard slot die head
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
