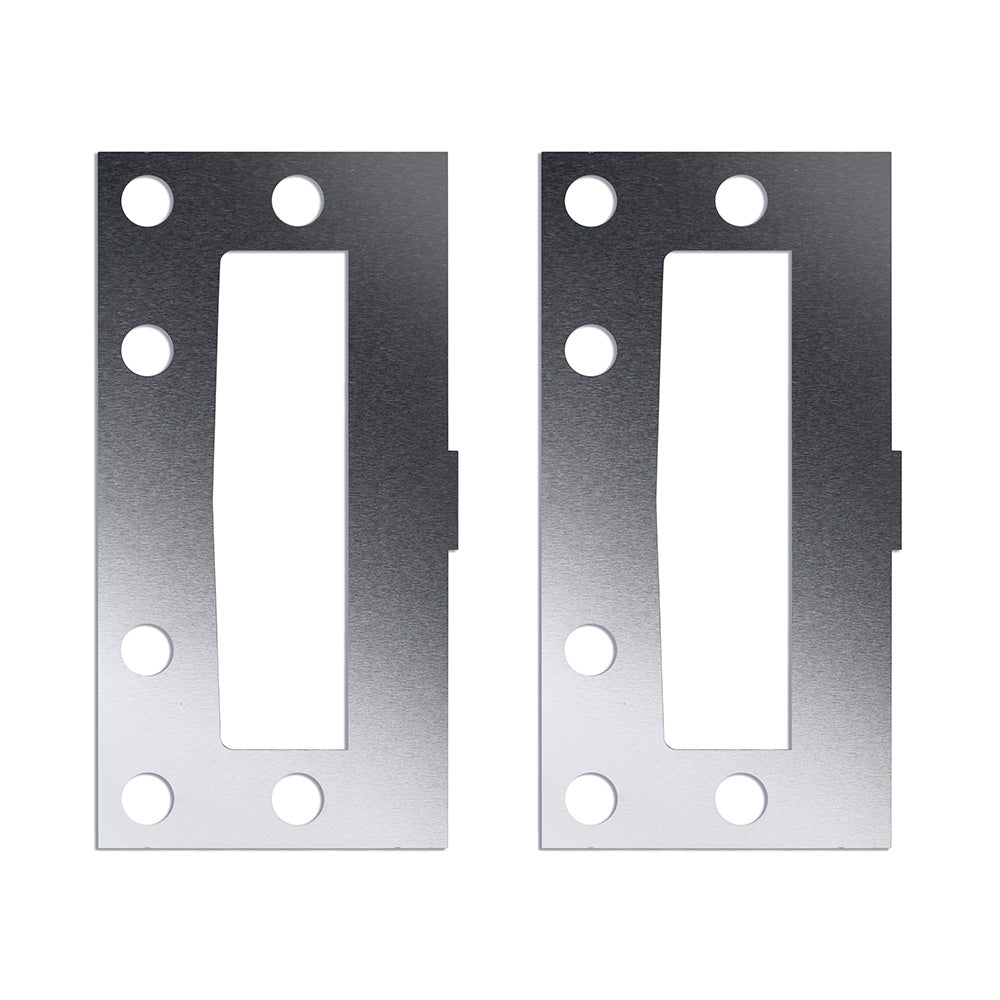

These meniscus guides fit the Ossila 50 mm standard slot die head and help fix the width of the coated film, giving cleaner and more clearly defined coating edges during slot die deposition.
Made from stainless steel, the guides are supplied in packs of 3. Versions are offered with set coating widths, lip depths of 0.5 mm, 1 mm or 1.5 mm, and guide thicknesses of 0.05 mm or 0.1 mm, so the guide can be matched to the coating job. They suit inks and solutions across a viscosity range of 0 – 1000 cPs.
Where a standard guide does not fit the requirement, custom options can be produced, including designs for multi-strip coatings. The guides sit alongside other slot die accessories such as slot die heads and shims, which also help control the width of the deposited film.
- Pinning the coating width when depositing films with the Ossila 50 mm slot die head.
- Producing better defined film edges in slot die coating of solutions from 0 – 1000 cPs.
- Setting up multi-strip coatings using custom meniscus guide options.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005M3-25
- Compatible with: Ossila 50 mm standard slot die head
- Material: Stainless steel
- Viscosity Range: 0 – 1000 cPs
- Guide Thickness: 0.05 mm, 0.1 mm
- Lip Depth: 0.5 mm, 1 mm, 1.5 mm
- Number per Pack: 3
—
—
