The Ossila Air Knife is an add-on for the Ossila Slot Die Coater that lets you control how freshly coated films dry. It is offered in two versions, Standard and High Precision, and both fit the 50 mm and 100 mm slot die heads. The unit connects to a compressed air line or a pressurised gas supply such as nitrogen for inert gas quenching, using a 4 mm push-fit adapter on the Standard model or a 6 mm push-fit adapter on the High Precision model.

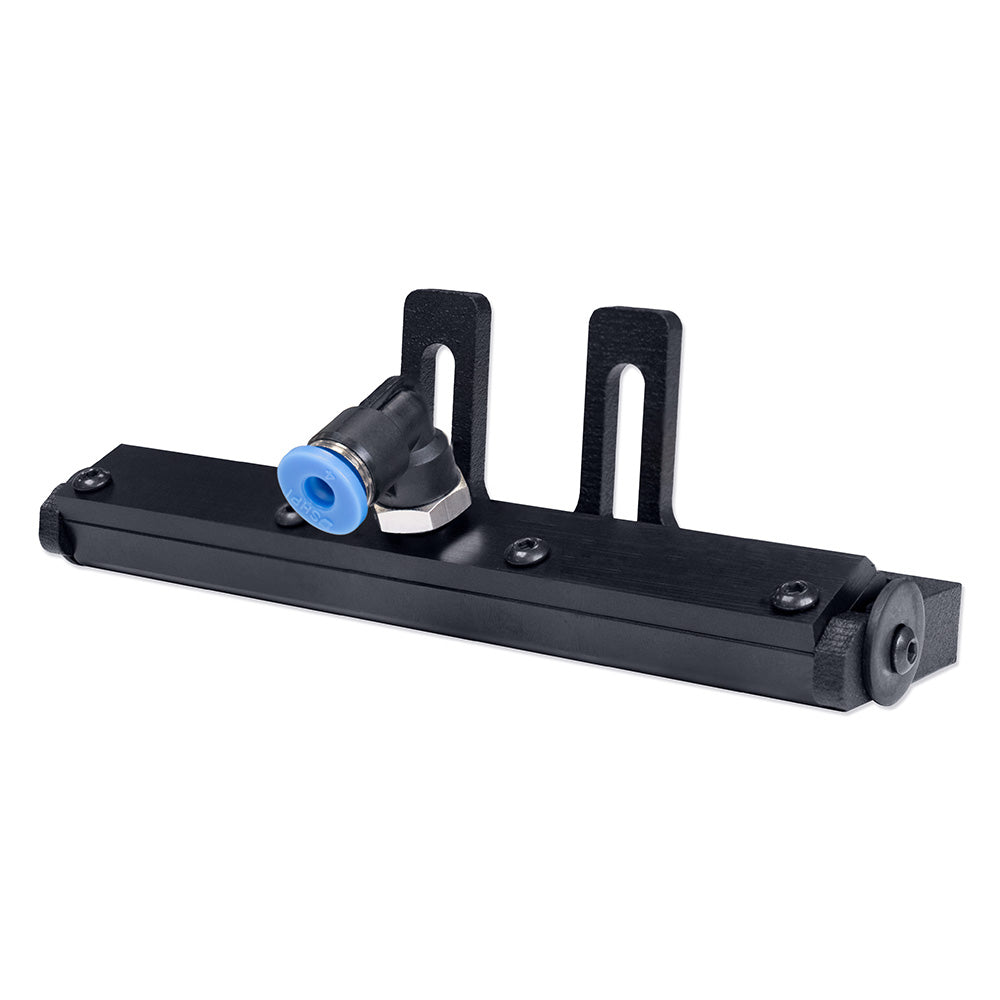

The Standard version mounts on the slot die head with an adjustable bracket, so the air curtain angle and its distance from the substrate can be set. Its shape uses the Coandă effect: air leaving the slit follows a convex curved surface and draws in surrounding air, giving a stronger flow in the curtain than at the slit itself.
The High Precision version has an overlapping lip and interchangeable shims that set the quenching width. This reduces turbulence and air backflow and gives an even stream along the full length, which helps produce uniformly quenched films over large areas. It sits on a separate mounting system with a Z-axis Tension System and Geared Clamp Design, so the quenching gap, angle and distance from the head can be set over a wider range without sagging. The air knife works only with counterbore slot die heads.
- Controlled drying of thin films deposited with the Ossila Slot Die Coater.
- Gas quenching of coated films using compressed air.
- Inert gas quenching with a pressurised nitrogen supply.
- Producing uniformly quenched, high-quality films over a large area with reduced turbulence and backflow.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005K1
- Air knife material: Aluminum 7065, black anodization
- Air curtain width (Standard): 100 mm
- Total head width (Standard): 120 mm
- Inlet pressure (Standard): 2 Bar min, 6 Bar max
- Input adapter (Standard): 5 mm threaded screw to 4mm push fit
- Height adjustment (Standard): 20 mm
- Air knife length (High Precision): 115 mm
- Quenching width (High Precision): Up to 95 mm
- Shim material and thickness: Stainless Steel, 200 µm
- Shim quenching widths: 20 mm, 45 mm, 70 mm, 95 mm
- Input adapter (High Precision): 1/4 NPT to 6mm push fit
- Max inlet pressure (High Precision): 7 Bar
- Quenching angle (High Precision): From -30 ° to +90 ° with 10 ° step (Perpendicular to the substrate = 0°)
- Quenching gap (High Precision): Up to 30 mm
- Compatible slot die heads: 50 mm and 100 mm (counterbore)
Use the air knife only with counterbore slot die heads, and check that the clamping screws of the head are counterbored before fitting. Keep the supply within the rated inlet pressure: 2 to 6 Bar for the Standard model and up to 7 Bar for the High Precision model.
—
