The Ossila Air Knife L3005K2 is a drying accessory for the Ossila Slot Die Coater, letting you control how coated films dry. It connects through a push-fit adapter to a compressed air or pressurized gas line, including nitrogen for inert gas quenching, and fits the 50 mm and 100 mm slot die heads with counterbored clamping screws.

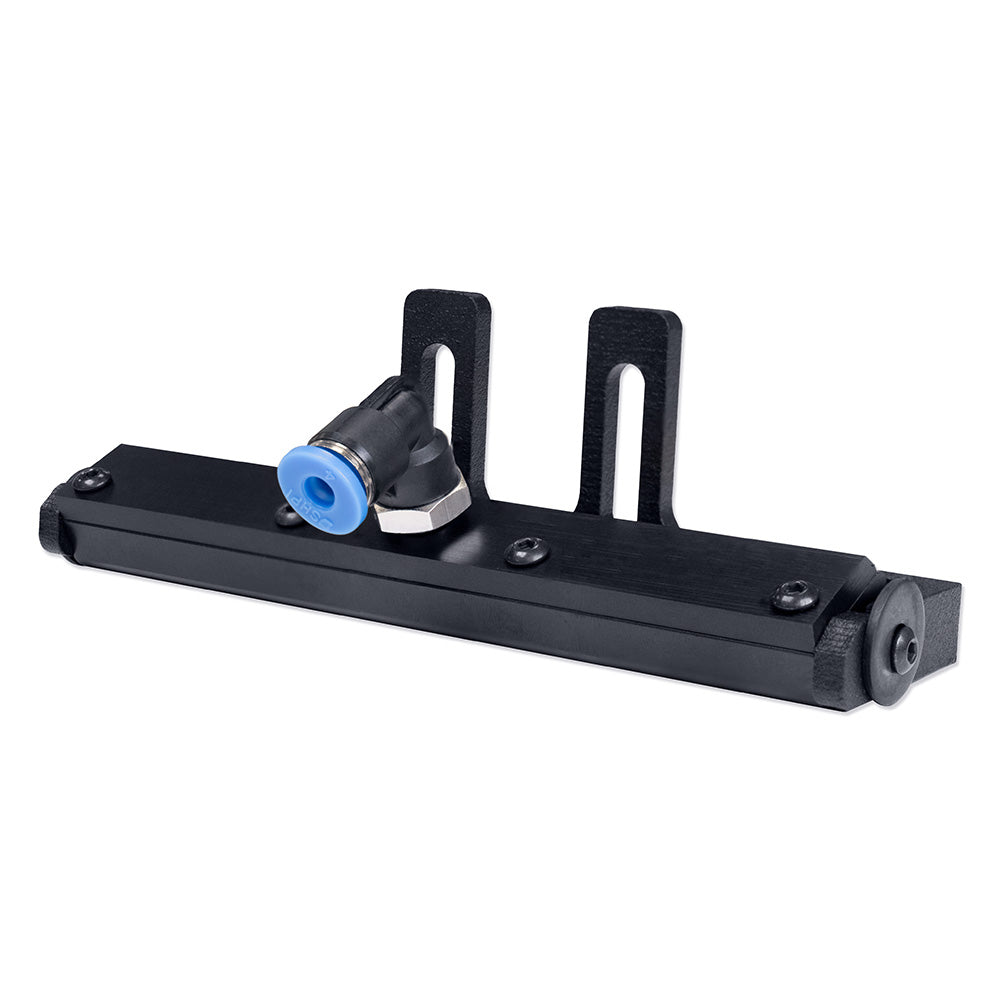

Two versions are offered. The Standard Air Knife mounts directly on the coater head via an adjustable bracket, so the air curtain angle and its distance from the substrate can be set. Its shape uses the Coandă effect: air leaving the slit follows a convex curved surface and draws in surrounding air, so the curtain carries more flow than the slit alone delivers.
The High Precision Air Knife has an overlapping lip and interchangeable stainless steel shims that set the quenching width. This reduces turbulence and backflow and gives an even air stream along the full length. A separate mounting system with a Z-axis Tension System and Geared Clamp Design allows wider adjustment of quenching gap, angle and distance from the slot die head without sagging during use.
- Controlled drying of thin films deposited with the Ossila Slot Die Coater.
- Gas quenching of coated films using compressed air.
- Inert gas quenching with nitrogen from a pressurized line.
- Producing uniformly quenched films over large areas with the High Precision version.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L3005K2
- Variants: Standard, High Precision
- Air knife material: Aluminum 7065, black anodization
- Air curtain width (Standard): 100 mm
- Total head width (Standard): 120 mm
- Inlet pressure (Standard): 2 Bar min, 6 Bar max
- Input adapter (Standard): 5 mm threaded screw to 4mm push fit
- Height adjustment (Standard): 20 mm
- Air knife length (High Precision): 115 mm
- Quenching width (High Precision): Up to 95 mm
- Shim: Stainless Steel, 200 µm
- Shim quenching widths: 20 mm, 45 mm, 70 mm, 95 mm
- Input adapter (High Precision): 1/4 NPT to 6mm push fit
- Max inlet pressure (High Precision): 7 Bar
- Quenching angle (High Precision): From -30 ° to +90 ° with 10 ° step (Perpendicular to the substrate = 0°)
- Quenching gap (High Precision): Up to 30 mm
—
—
