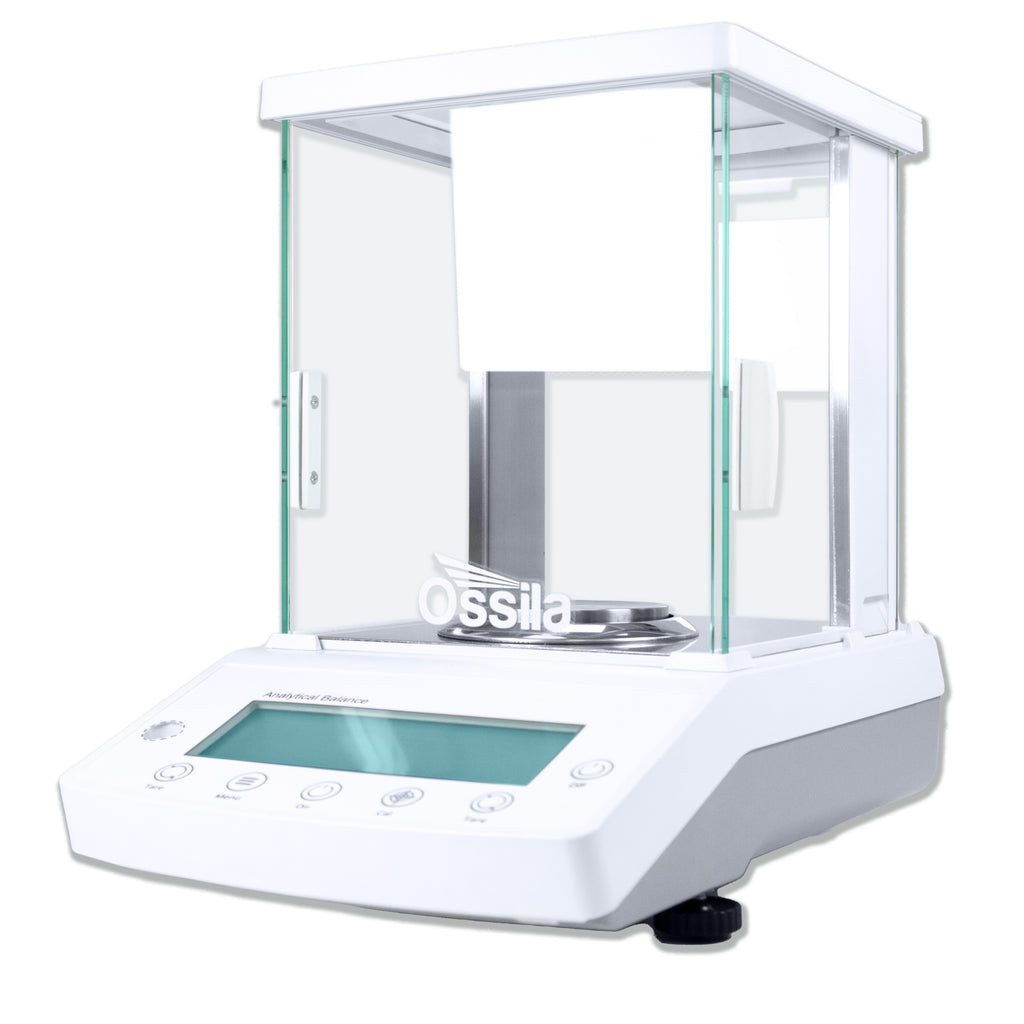

The Ossila Analytical Balance L2010A2 is a precision laboratory scale with internal calibration, available in 120g and 220g maximum capacities. It resolves weights to 0.1 mg, with repeatability and linearity of ±0.2 mg and a stabilization time of 8 s, making it suited to weighing small samples accurately.
An electromagnetic sensor provides fast response, while the onboard software offers several operating modes as standard: normal weighing in mg, g, oz or ct, parts counting, percentage determination, density measurement and weight checking. An RS232 serial port links the balance to a computer or printer for data logging, with selectable baud rate and timed, continuous or on-demand output.
Each balance is supplied with a test certificate verifying performance across its range using traceable class E1 weights from 1 mg to 100 g. The unit carries CE and UKCA markings, and the package includes a detachable control unit, weighing pan, draft guard and a 9V, 2.2A power supply.
- Precise weighing of small laboratory samples down to 0.1 mg resolution.
- Counting identical parts using reference quantities of 10, 20, 50, 100 or 1000.
- Percentage determination and weight checking against a set reference weight.
- Density measurements using the built-in weighing mode.
- Logging weighing data to a computer or printing results via RS232.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L2010A2
- Calibration: Internal
- Maximum Capacity: 120g / 220g
- Minimum Weight Capacity: 10 mg
- Weight Resolution: 0.1 mg
- Repeatability: ±0.2 mg
- Linearity: ±0.2 mg
- Stabilization Time: 8 s
- Warm-up Time: 30 - 60 minutes
- Pan Size: ⌀ 80 mm
- Power Supply Input Voltage Range: DC9V 2.2A/ AC 110-220V 50Hz
- Operating Temperature: 17.5 °C to 22.5 °C (63.5°F to 72.5°F)
- Overall Dimensions (W x H x D): 305mm x 295 mm x 475 mm (12" x 11.6" x 18.7")
- Interface: RS232
- Baud Rate: 1200, 2400, 4800, 9600
- Weighing Units: milligram, grams, ounces, carat
Allow a warm-up time of 30 - 60 minutes before use and operate the balance within 17.5 °C to 22.5 °C. Use the supplied draft guard to shield the pan during weighing.
—
