AQ(PhDPA)2, or 2,6-bis[4-(diphenylamino)phenyl]-9,10-anthracenedione (CAS 1640978-33-1), is a red dopant material for thermally activated delayed fluorescence (TADF) OLEDs, energy storage research and optical waveguides. It is supplied as a sublimed grade with >99.0% purity (HPLC) and as an unsublimed 98% grade.

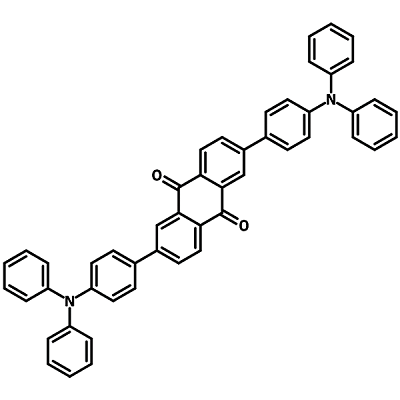

The molecule is a D-π-A-π-D chromophore: two electron-donating triphenylamine groups are linked at the 2 and 6 positions of an electron-accepting anthraquinone core. This donor-acceptor design makes it an efficient red TADF emitter.
Beyond OLEDs, AQ(PhDPA)2 serves as a monomer for the polymer PBDAPA, which forms an urchin-like morphology with a specific surface area of ∼129.6 m2 g-1 and shows double charge-discharge behaviour with a specific capacity of 132.7 mAh g-1. When doped into PMMA as the upper cladding of a passive SU-8 waveguide and pumped from above by a 450 nm LED, it delivered a gain of 2.6 dB cm-1.
- Red emitter in the emissive layer of TADF-OLED devices.
- Monomer for preparing the polymer PBDAPA studied as a lithium-ion battery cathode material.
- Dopant in PMMA cladding for polymer waveguide optical amplifiers pumped by LEDs.
- Research into intramolecular charge-transfer and delayed fluorescence photophysics.
| Brand | Ossila |
|---|---|
| CAS number | 1640978-33-1 |
| Molecular formula | C50H34N2O2 |
| Purity | Sublimed >99.0% (HPLC); unsublimed 98% |
| Category | — |
| Pack sizes | 100 mg, 250 mg, 500 mg, 1 g |
| Physical form | Red powder/crystals |
| Storage | — |
- Product code: M2387A1
- Molecular Weight: 694.82 g/mol
- Full Name: 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione
- Synonyms: AQ-b1, BDAPA, TPAAQ, DPA-Ph-AQ
- Absorption: λmax 614 nm in toluene
- Fluorescence: λmax 304 nm, 335 nm, 367 nm and 455 nm in toluene
- HOMO/LUMO: HOMO = 5.90 eV, LUMO = 3.60 eV
- Classification / Family: Triphenylamine derivatives, Anthracenedione, TADF Red dopant, Sublimed materials
—
—
