AQ(PhDPA)2, or 2,6-bis[4-(diphenylamino)phenyl]-9,10-anthracenedione (CAS 1640978-33-1), is a red dopant material known as an efficient thermally activated delayed fluorescence (TADF) emitter. It is supplied as a red powder or crystals in sublimed grade (>99.0% by HPLC) or unsublimed grade (98%).

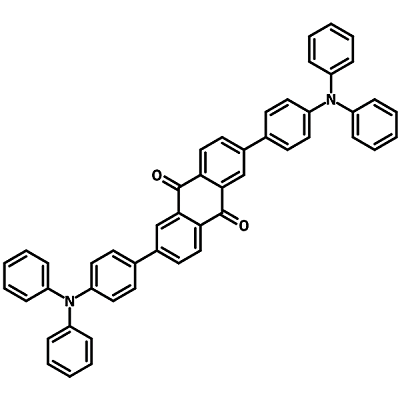

Its molecule follows a D-π-A-π-D chromophore design: an electron-deficient anthraquinone core carries two electron-rich triphenylamine groups at the 2 and 6 positions. Reported energy levels are HOMO 5.90 eV and LUMO 3.60 eV, with absorption peaking at 614 nm in toluene.
Beyond OLEDs, the compound serves as a monomer for the polymer PBDAPA, which forms an urchin-like morphology with a specific surface area of ∼129.6 m2 g-1 and a specific capacity of 132.7 mAh g-1 with double charge-discharge behaviour. When doped into PMMA as the upper cladding of a passive SU-8 waveguide and pumped from above with a 450 nm LED, it delivered a gain of 2.6 dB cm-1.
- Red emitter or dopant in TADF-OLED emissive layers.
- Monomer for preparing the poly(triphenylamine) derivative PBDAPA used as a lithium-ion battery cathode material.
- Gain dopant in PMMA cladding for LED-pumped polymer waveguide amplifiers.
- Research into intramolecular charge-transfer and delayed fluorescence photophysics.
| Brand | Ossila |
|---|---|
| CAS number | 1640978-33-1 |
| Molecular formula | C50H34N2O2 |
| Purity | Sublimed >99.0% (HPLC); unsublimed 98% |
| Category | — |
| Pack sizes | 100 mg, 250 mg, 500 mg, 1 g |
| Physical form | Red powder/crystals |
| Storage | — |
- Product code: M2387B1
- Molecular Weight: 694.82 g/mol
- Full Name: 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione
- Synonyms: AQ-b1, BDAPA, TPAAQ, DPA-Ph-AQ
- Absorption: λ max 614 nm in toluene
- Fluorescence: λ max 304 nm, 335 nm, 367 nm and 455 nm in toluene
- HOMO/LUMO: HOMO = 5.90 eV, LUMO = 3.60 eV
- Classification / Family: Triphenylamine derivatives, Anthracenedione, TADF Red dopant, Sublimed materials
—
—
