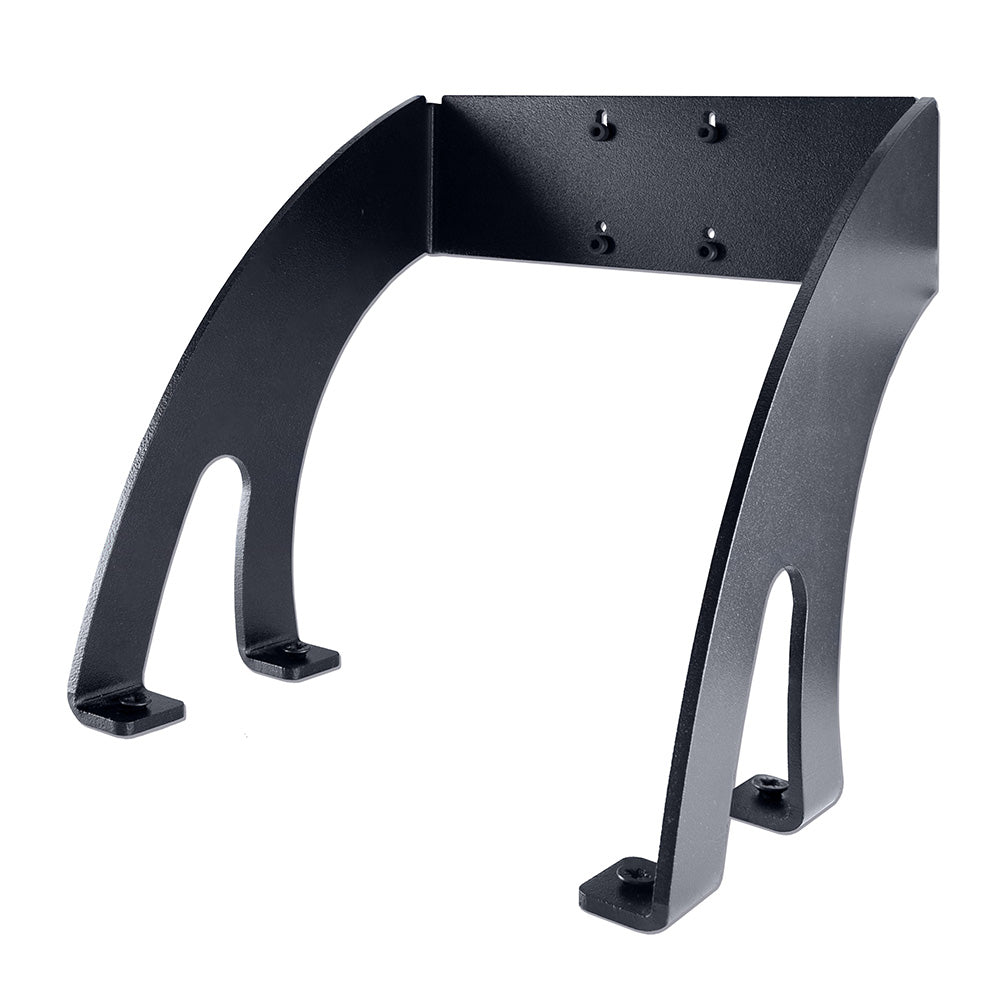

The Ossila A2006A1 bracket is a mounting accessory that joins an Ossila LED Solar Simulator lamp to an Automated Solar Cell I-V Test System. It ships as part of the Automated Solar Cell Testing Kit, and it also lets labs combine a simulator and test system that were purchased separately.
Fitting is straightforward: the base screws onto the I-V test system with the screws provided, and the lamp attaches to the plate that sits above the automated test board. Use the upper pair of holes with the 20 x 15 mm substrate test board (S2006) or the lower pair with the 25 x 25 mm substrate board (S211). In either configuration the lamp is held at a fixed 8.5 cm working distance from the substrate, which removes a source of positioning error and supports repeatable I-V measurements.
The bracket works with all Ossila solar simulator lamps, with or without the indoor light filter, and with automated test systems T2003B3 and T2003E3 purchased from November 4 2022 (marked J1000A3-xxxx on the underside). It is not compatible with generic riser boards.
- Building an integrated I-V measurement setup with automatic pixel switching under solar illumination.
- Retrofitting a compatible existing automated I-V test system with an Ossila solar simulator.
- Characterising solar cells on 20 x 15 mm or 25 x 25 mm substrates at a consistent lamp-to-sample distance.
- Improving repeatability when analysing device metrics such as fill factor, open-circuit voltage and power conversion efficiency.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: A2006A1
- Dimensions: 135 x 152 x 135 mm (L x W x H)
- Fixed Lamp Height: 85 mm
- Working Distance: 8.5 cm
- Compatible Substrates: 20 x 15 mm (S2006) or 25 x 25 mm (S211)
- Compatible Test Systems: T2003B3 and T2003E3 purchased from November 4 2022 (code J1000A3-xxxx)
- In the Box: Fixed solar simulator bracket, attachment screws and allen keys
—
—
