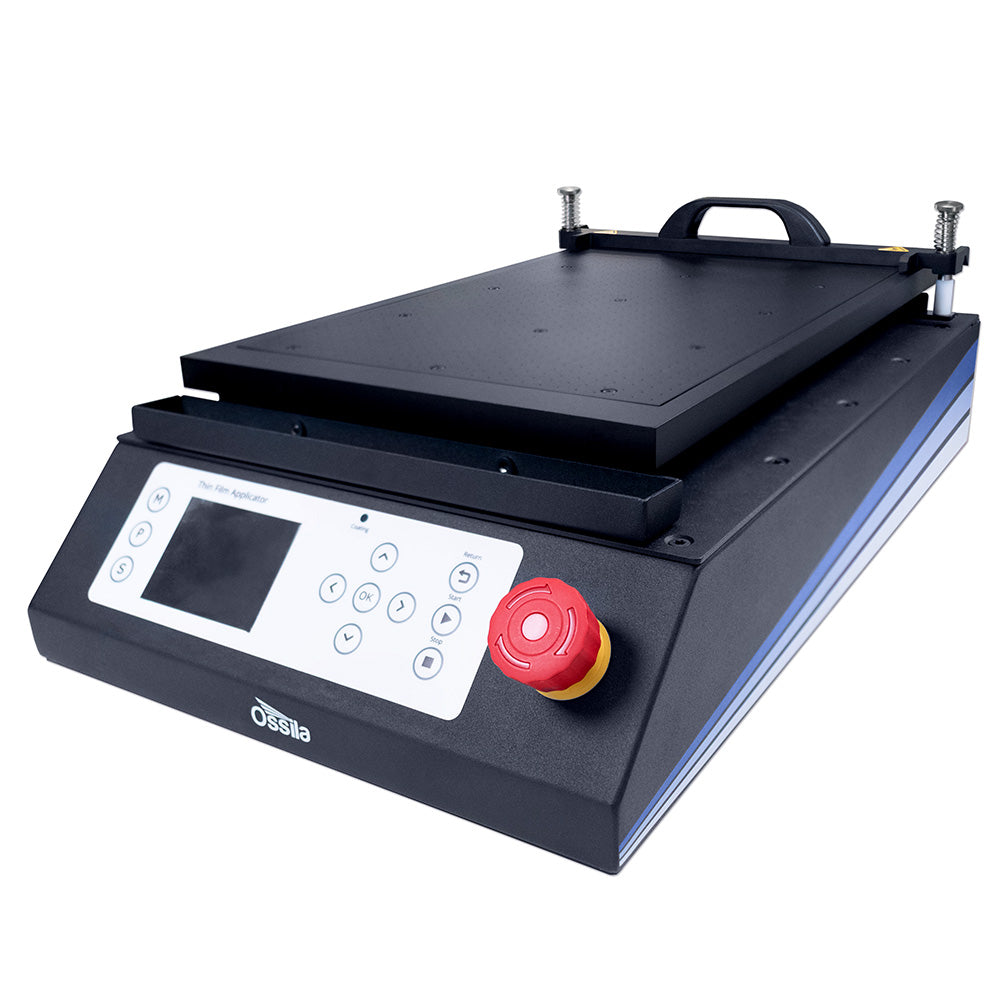

The Ossila Automatic Film Applicator is a motorised coating platform that moves your applicator across the substrate at a set, repeatable speed. It works with Mayer bars, blade coaters and gap applicators as well as Sheen, Baker and Bird applicators, so several coating methods can be explored on a single instrument.
Stage speed can be programmed from 0.05 mm.s -1 up to 250 mm.s -1 in 0.01 mm.s -1 steps, letting you match the motion to the applicator and the viscosity of your solution and avoid coating defects. The system handles coating widths up to 225 mm over a 290 mm (A4) travel length, making it suited to scaling up from small samples to larger areas.
Two stage options are offered: an 8 mm toughened glass stage with a printed grid for quick sample alignment and easy cleaning, or an anodized aluminium vacuum stage that holds substrates firmly, ideal for flexible films and foils. A quick-lock magnetic design allows the stage and drip tray to be removed, swapped and cleaned between runs.
- Bar coating of thin films with Mayer rods on substrates up to A4 size.
- Doctor blade and gap applicator coating with controlled, repeatable stage speeds.
- Coating flexible or foil substrates held in place on the vacuum stage.
- Comparing different coating techniques such as Sheen, Baker or Bird applicators on one system.
- Standardising film deposition by programming consistent coating speeds.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L2009A1-US
- Maximum Stage Travel Length: 290 mm (A4)
- Minimum Stage Speed: 0.05 mm.s -1
- Maximum Stage Speed: 250 mm.s -1
- Stage Speed Increments: 0.01 mm.s -1
- Vacuum Stage: Anodized aluminum stage, 0.8 mm vacuum holes, square grid arrangement (7.75 mm spacing), 6 mm push-fit connector
- Glass Stage: 8 mm toughened glass, printed grid pattern
- Maximum Coating Width: 225 mm (accommodates Mayer bars with a 255 mm coating width)
- Minimum Mayer Bar Length: 220 mm
- Power Supply: DC 24 V, 2 A, via 100 – 240 V 50/60 Hz power adapter
- Dimensions (D x W x H): 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5")
- Weight: 6.45 kg
—
—
