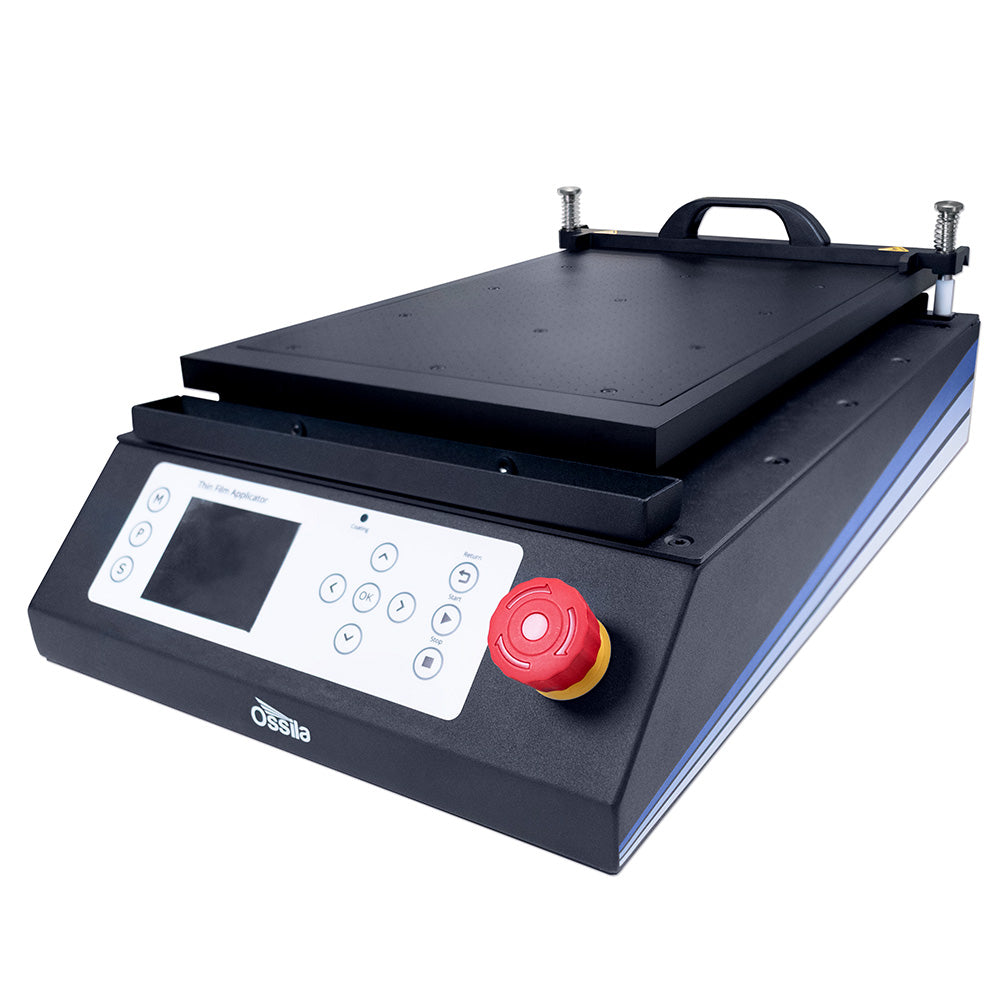

The Ossila Automatic Film Applicator is a motorised coating platform that moves your chosen applicator across a substrate at a programmed, steady speed. It works with Mayer bars, blade coaters and gap applicators, as well as Sheen, Baker and Bird applicators, so a single system can serve bar coating, doctor blade coating and related thin-film techniques on samples up to A4 size.
Stage speed can be set from 0.05 mm.s -1 to 250 mm.s -1 in 0.01 mm.s -1 steps, letting you match the movement to the applicator and the viscosity of your solution and avoid coating defects. Coating widths reach 225 mm over a 290 mm travel length, and Mayer bars with a 255 mm coating width can be accommodated.
Two stage options are offered: an 8 mm toughened glass stage with a printed grid for fast sample alignment and easy cleaning, or an anodized aluminum vacuum stage that holds flexible and foil substrates firmly in place. A quick-lock magnetic design lets the stage and drip tray be removed, swapped and cleaned between coatings.
- Automated bar coating with Mayer rods for repeatable film thicknesses on large substrates.
- Doctor blade coating of thin films with consistent, programmable applicator speed.
- Coating with gap, Sheen, Baker or Bird applicators on one shared platform.
- Securing and coating flexible or foil substrates using the vacuum stage.
- Scaling up thin-film coating processes to sample areas up to A4.
| Brand | Ossila |
|---|---|
| CAS number | — |
| Molecular formula | — |
| Purity | — |
| Category | — |
| Pack sizes | — |
| Physical form | — |
| Storage | — |
- Product code: L2009B1-EU
- Maximum Stage Travel Length: 290 mm (A4)
- Minimum Stage Speed: 0.05 mm.s -1
- Maximum Stage Speed: 250 mm.s -1
- Stage Speed Increments: 0.01 mm.s -1
- Vacuum Stage: Anodized aluminum stage, 0.8 mm vacuum holes, square grid arrangement (7.75 mm spacing), 6 mm push-fit connector
- Glass Stage: 8 mm toughened glass, printed grid pattern
- Maximum Coating Width: 225 mm (accommodates Mayer bars with a 255 mm coating width)
- Minimum Mayer Bar Length: 220 mm
- Power Supply: DC 24 V, 2 A, via 100 – 240 V 50/60 Hz power adapter
- Dimensions (D x W x H): 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5")
- Weight: 6.45 kg
- In the Box: Ossila Automatic Film Applicator, Power supply
The stage and drip tray attach with a quick-locking magnet and can be removed for cleaning of excess solution between coatings.
—
