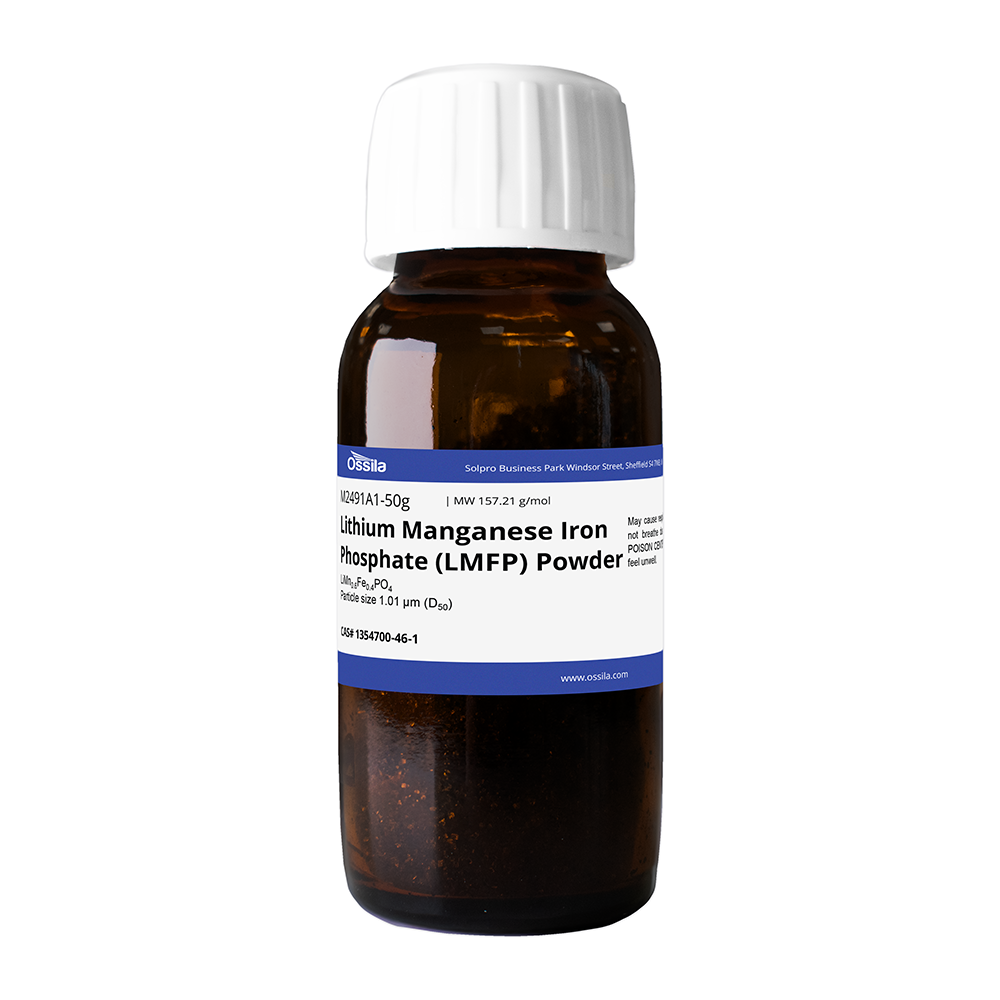

Ossila lithium manganese iron phosphate (LMFP) powder, CAS 1354700-46-1, is a cathode active material for lithium batteries with the formula LiMn0.6Fe0.4PO4. It is a manganese-doped form of lithium iron phosphate (LFP), supplied as a black/brown powder with a D50 particle size of 1.01 μm.
Adding manganese raises the working voltage of the cell through the Mn2+/3+ redox couple (~4.1 V), giving an energy density of 210-240 Wh/kg, higher than that of standard LFP cells. The material shows a capacity of 161.3 mAh/g at 0.1C, a rate capability of 90.1 mAh/g at 5C, and retains 95.6% of its capacity after 800 cycles at 1C.
LMFP adopts an olivine-type structure in which tetrahedral phosphate units form a rigid framework that resists lattice distortion, supporting structural stability and safety during charge and discharge. The manganese ratio matters: above 60 wt% manganese, Jahn-Teller distortion of Mn3+ slows redox kinetics and causes anisotropic lattice strain, lowering rate performance and volumetric capacity. The powder is described as having low water and carbon content.
- Formulating cathodes for lithium-ion battery cells with higher energy density than standard LFP.
- Research on manganese-doped olivine phosphate cathode materials and their electrochemical performance.
- Studies of rate capability and long-term cycling stability of phosphate-based cathodes.
- Green energy and battery materials development work.
| Brand | Ossila |
|---|---|
| CAS number | 1354700-46-1 |
| Molecular formula | LiMn0.6Fe0.4PO4 |
| Purity | — |
| Category | — |
| Pack sizes | 50 g, 100 g, 250 g, 500 g |
| Physical form | Black/brown powder |
| Storage | — |
- Product code: M2491A1
- Molecular Weight: 157.21 g/mol
- Synonyms: LMFP, Lithium iron manganese phosphate, Lithium ferromanganese phosphate
- Particle Size: 1.01 μm (D50)
- Crystal Structure: Olivine-type
- Energy Density: 210-240 Wh/kg
- Capacity: 161.3 mAh/g at 0.1C
- Rate Capability: 90.1 mAh/g at 5C
- Cycling Stability: 95.6% capacity retention after 800 cycles at 1C
Refer to the MSDS for this product for safe handling and storage information.
—
