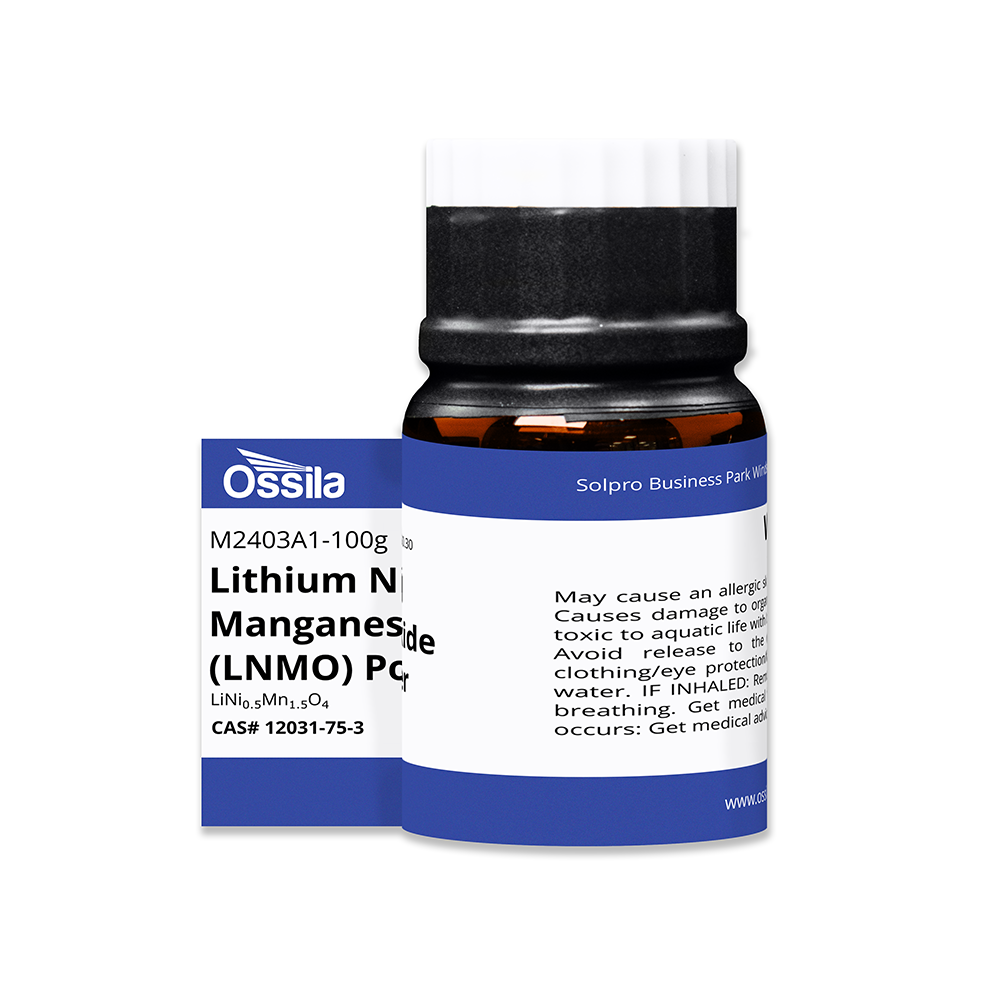

Ossila M2403A1 is lithium nickel manganese oxide (LNMO, also written LMNO), a spinel LiNi0.5Mn1.5O4 powder (CAS 12031-75-3) supplied as a cathode active material for lithium-ion batteries. It offers a theoretical specific capacity of up to 146.8 mAh g-1, a theoretical energy density of 650 Wh kg-1 and an operating voltage of 4.7 V vs. Li/Li+.
During charge and discharge, LNMO can be completely lithiated and delithiated with no evident change to its structure. Its three-dimensional spinel framework allows intrinsically fast lithium-ion diffusion, which supports good rate capability and cycling stability. In published work, an N-doped LNMO cathode delivered 103 mA h g-1 at 25 °C after 8000 cycles and kept 92% capacity retention after 1000 cycles at 60 °C.
Compared with conventional LiFePO4 and LiCoO2 cathodes, LNMO combines relatively low cost with excellent thermal stability. Its low nickel content also makes it a candidate material for hybrid electric vehicle batteries. The black to grey powder is available in 50 g, 100 g and 250 g packs.
- Formulating high-voltage cathodes for lithium-ion battery research.
- Studying rate capability and long-term cycling of spinel cathode materials.
- Evaluating cathode performance at elevated operating temperatures.
- Developing low-nickel cathode chemistries for hybrid electric vehicle batteries.
- Benchmarking against conventional LiFePO4 and LiCoO2 cathodes.
| Brand | Ossila |
|---|---|
| CAS number | 12031-75-3 |
| Molecular formula | LiNi0.5Mn1.5O4 |
| Purity | — |
| Category | — |
| Pack sizes | 50 g, 100 g, 250 g |
| Physical form | — |
| Storage | — |
- Product code: M2403A1
- Product Code: M2403A1
- Molecular Weight: 660.30 g/mol
- Synonyms: Lithium Manganese Nickel Oxide
- Color: Black to grey powder
- Li Content: 4.0 ± 0.2%
- Ni Content: 15.1 ± 1%
- Mn Content: 44.2 ± 1.2%
- BET Surface Area: 0.23 m2/g
- Tap Density: 1.78 m2/g
- Compact Density: 3.1 g/cm3
- pH: 9.22
- Operating Voltage: 4.7 V (vs. Li/Li+)
—
—
