• Pompa Vakum Joan Lab (Vacuum Pump VP) - AMI Scientific
1 1

Joan Lab

Pompa Vakum Joan Lab VP

Pompa Vakum Joan Lab VP
Rp 3.585.750,00
Rp 3.585.750,00
Sale Sold out
Shipping calculated at checkout.
Pumping Speed
Pembayaran hanya melalui request quotation dan dilakukan setelah tim kami menghubungi Anda. Mohon cantumkan nomor WhatsApp aktif untuk konfirmasi pesanan & pembuatan invoice. Estimasi pengiriman 1-2 bulan setelah pembayaran. Jika belum ada respons, hubungi +62 823-2282-4346.

View full details

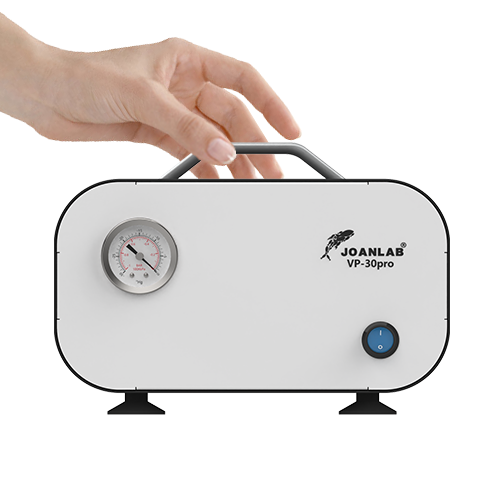

The Joan Lab VP is a compact laboratory vacuum pump with a rubber diaphragm, offered in 10 L/min, 15 L/min and 30 L/min suction flow versions. It is used in chemistry for solvent filtration and evaporation, in pharmaceutical quality control, in environmental water analysis, in food and beverage testing, and for membrane filtration in microbiology.

The VP-10L and VP-15L run on negative pressure, reaching a limit vacuum of 0.075Mpa on the 10 L/min model, with noise below 40db and 45db respectively. The VP-30L works with both positive and negative pressure, reaching 0.085Mpa vacuum and up to 5.0bar pressure, with noise under 50db.

Every model has an IP21-rated enclosure and protection against overload, overheating and short circuits, and the 10 L/min and 15 L/min units weigh 1.58 kg net. The pump comes with a 1-year warranty.

Related products

  • Solvent filtration and evaporation in chemistry laboratories.
  • Vacuum filtration in pharmaceutical quality control.
  • Sample preparation for environmental water analysis.
  • Filtration work in food and beverage testing.
  • Membrane filtration in microbiology.

Brand Joan Lab
CAS number —
Molecular formula —
Purity —
Category —
Pack sizes —
Physical form —
Storage —
  • Product code: VP
  • Type (VP-10L / VP-15L): Negative pressure
  • Type (VP-30L): Positive and negative pressure
  • Suction flow rate: 10L/min (VP-10L), 15L/min (VP-15L), 30 L/min (VP-30L)
  • Limit vacuum degree: 0.075Mpa (VP-10L), 0.085Mpa (VP-30L)
  • Greatest pressure (VP-30L): 5.0bar
  • Noise: <40db (VP-10L), <45db (VP-15L), <50db (VP-30L)
  • Power supply: 20W (VP-10L), 30W (VP-15L), 50W (VP-30L)
  • Enclosure rating: IP21
  • Diaphragm: Rubber
  • Protection devices: Overload protection, over temperature protection, short circuit protection
  • Gross/Net weight (VP-10L / VP-15L): 1.95/1.58 kg
  • Warranty: 1-year warranty

—

—
