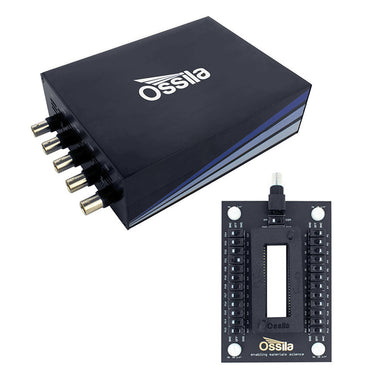

Ossila Solar Cell I-V Test System without Solar Simulator T2002F2

Ossila Solar Cell I-V Test System without Solar Simulator T2002F2
Rp 99.381.450,00
Rp 99.381.450,00
Sale Sold out
Shipping calculated at checkout.
Pembayaran hanya melalui request quotation dan dilakukan setelah tim kami menghubungi Anda. Mohon cantumkan nomor WhatsApp aktif untuk konfirmasi pesanan & pembuatan invoice. Estimasi pengiriman 1-2 bulan setelah pembayaran. Jika belum ada respons, hubungi +62 823-2282-4346.

View full details

The Ossila Solar Cell I-V Test System T2002F2 is a compact source-measure setup for characterizing photovoltaic devices in the research lab. It records the current-voltage curve of a solar cell, and the bundled PC software then works out the main device metrics: power conversion efficiency (PCE), fill factor (FF), short-circuit current density (Jsc), open-circuit voltage (Voc), maximum power (Pmax), shunt resistance (Rsh) and series resistance (Rs).

The unit sources voltages from -10 V to +10 V with a resolution down to 170 µV and measures currents from ±10 nA up to ±200 mA. The software supports custom settle times, forward and backward sweeps for hysteresis studies, stabilized current output, maximum power point tracking and repeated lifetime measurements to follow device stability over time.

This configuration is supplied without a solar simulator; a solar simulator is required to obtain standard efficiency measurements. In the manual version, switches on the test board are used to select each pixel, and the T2002F test board suits Ossila S241 and S251 substrates (75 x 25 mm).

Related products

  • Measuring current-voltage curves of solar cells and automatically extracting PCE, FF, Jsc, Voc, Pmax, Rsh and Rs.
  • Tracking the stability of solar cell properties through periodic I-V measurements over extended periods.
  • Studying device hysteresis with consecutive forward and backward voltage sweeps.
  • Following the maximum power point, Jmp and Vmp of a photovoltaic device over time.
  • Testing multi-pixel devices fabricated on Ossila 75 x 25 mm substrates.

Brand Ossila
CAS number —
Molecular formula —
Purity —
Category —
Pack sizes —
Physical form —
Storage —
  • Product code: T2002F2
  • Voltage source range: ± 10 V
  • Voltage source accuracy: 10 mV
  • Voltage source resolution: 170 µV
  • Voltage measure range: ± 10V
  • Voltage measure resolution: 10 µV
  • Current measure ranges: ± 200 mA, ± 20 mA, ± 2 mA, ± 200 µA, ± 20 µA
  • Best current resolution: 0.1nA
  • Burden voltage: <20 mV
  • Substrate compatibility: S241, S251 (75 x 25 mm)
  • Source measure unit dimensions (W x H x D): 125 mm x 55 mm x 185 mm
  • Test board dimensions (T2002F): 100 mm x 40 mm x 150 mm
  • Power adapter: 24 VDC
  • Operating system: Windows 11 (64-bit)
  • Connectivity: USB 2.0, or Ethernet (requires DHCP)

—

—
