Ossila LED Solar Simulator G2009B2

Ossila LED Solar Simulator G2009B2
Rp 104.611.500,00
Rp 104.611.500,00
Sale Sold out
Shipping calculated at checkout.
Pembayaran hanya melalui request quotation dan dilakukan setelah tim kami menghubungi Anda. Mohon cantumkan nomor WhatsApp aktif untuk konfirmasi pesanan & pembuatan invoice. Estimasi pengiriman 1-2 bulan setelah pembayaran. Jika belum ada respons, hubungi +62 823-2282-4346.

View full details

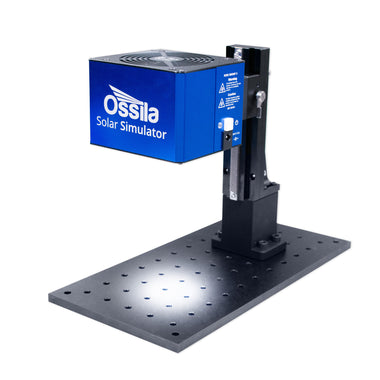

The Ossila LED Solar Simulator G2009B2 is a steady-state, LED-based light source for photovoltaic testing of small-area solar cells. Classified to IEC 60904-9:2020, it reaches AAA over a 15 mm diameter area and ABA over a 25 mm diameter area, delivering 1000 W/m2 (1 Sun) at an 8.5 cm working distance across 350 nm - 1000 nm.

Each LED can be power-controlled individually, so the spectrum can be tuned to particular lighting conditions, including calibration for indoor photovoltaics. The lamp is ready within minutes, runs for up to 10000 hours, needs minimal maintenance and carries no explosion risk. Every unit is calibrated with a NIST traceable spectroradiometer and ships with a performance report.

Control is handled through the Ossila Solar Simulator Console software over USB, or via a serial command library for specialist measurements. An optical breadboard and adjustable height stand are supplied, allowing the compact lamp to sit on a bench or mount to larger optical tables.

Related products

  • Current-voltage testing of small-area solar cells under 1 Sun illumination.
  • Testing larger devices on 25 mm x 25 mm substrates with ABA-class illumination.
  • Long-term stability and lifetime measurements of photovoltaic devices.
  • Indoor photovoltaic testing using a tuned spectral output.
  • Optoelectronic research requiring a simulated sunlight environment.

Brand Ossila
CAS number —
Molecular formula —
Purity —
Category —
Pack sizes —
Physical form —
Storage —
  • Product code: G2009B2
  • Type: LED-based, steady state
  • Spectral Match: A
  • Spatial Uniformity (15 mm diameter): A
  • Spatial Uniformity (25 mm diameter): B
  • Spatial Uniformity (32 mm diameter): C
  • Temporal Instability: A
  • Spectral Deviation: <70%
  • Spectral Coverage: >80%
  • Working Distance: 8.5 cm (3.35")
  • Irradiance: 1000 W/m2 (+/- 5% at working distance and calibration temperature)
  • Wavelength Range: 350 nm - 1000 nm
  • Maximum Lamp Time: 10000 hours
  • Lamp Dimensions (L x W x H): 10.5 cm x 9.0 cm x 8.0 cm (4.13" x 3.54" x 3.15")
  • Weight: 600 g (1.32 lbs)
  • Connectivity: USB

The simulator is not intended for use in volatile environments.

—
