Ossila Dip Coater L2006A2-US/EU/UK/AU

Ossila Dip Coater L2006A2-US/EU/UK/AU
Rp 104.611.500,00
Rp 104.611.500,00
Sale Sold out
Shipping calculated at checkout.
Pembayaran hanya melalui request quotation dan dilakukan setelah tim kami menghubungi Anda. Mohon cantumkan nomor WhatsApp aktif untuk konfirmasi pesanan & pembuatan invoice. Estimasi pengiriman 1-2 bulan setelah pembayaran. Jika belum ada respons, hubungi +62 823-2282-4346.

View full details

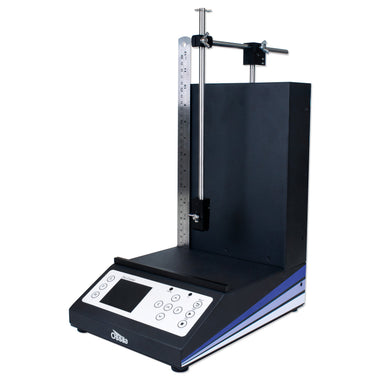

The Ossila Dip Coater is a programmable bench instrument for depositing thin films by dipping a substrate into a solution and withdrawing it at a controlled rate. Its withdrawal speed runs from 0.05 to 125 mm/s, so a single system covers a broad span of film thicknesses.

A high-precision stage and motor give smooth movement and repeatable results from one sample to the next. Immersion and withdrawal settings are adjusted separately, and the withdrawal speed can change along the length of the substrate to build gradient films as well as films of uniform thickness. A crash detection system halts the motor if the substrate or arm strikes the coater base or a beaker, helping protect samples and hardware.

The integrated software supports manual or automatic operation and lets users save programmes and routines, so several substrates can be coated without setting the device up again each time. A quick-release clamp speeds up loading and unloading, and a magnetic ruler attachment is included in the design.

Related products

  • Fabricating thin films of controlled thickness for research and development.
  • Producing gradient films by varying withdrawal speed across the substrate length.
  • Coating multiple substrates reproducibly using saved programmes and routines.
  • Running repeated dip cycles automatically for film optimisation studies.

Brand Ossila
CAS number —
Molecular formula —
Purity —
Category —
Pack sizes —
Physical form —
Storage —
  • Product code: L2006A2-US
  • Minimum Withdrawal Rate: 0.05 mm.s-1
  • Maximum Withdrawal Rate: 125 mm.s-1
  • Rate Reproducibility: ±0.01% @ 1 mm.s-1; ±0.1% @ 10 mm.s-1; ±0.3% @ >50 mm.s-1
  • Maximum Travel Distance: 175 mm (6.89")
  • Maximum Number of Cycles: 1,000 cycles
  • Maximum Timer Duration (HH MM SS): 99:59:59
  • Integrated Software Features: Variable withdrawal speed, repeat cycles, crash detection
  • Programmes: 20
  • Power Supply: DC 24 V
  • Product Dimensions (W x H x D): 200 mm x 380 mm (580 mm fully extended) x 300 mm (7.87" x 14.96" [22.83"] x 11.81")
  • Weight: 3.6 kg
  • Plug Variants: Type B (US), Type F (EU), Type G (UK), Type I (AU)

—

—
